How to Choose the Right Environmental Test Chamber Manufacturer
Read More >
In today's era of rapid development of science and technology, the requirements of various products for protection performance are increasing. The IP6X test equipment, as an important device for evaluating the dustproof capability of products, plays a key role in many industries. However, in the face of a wide range of IP6x test equipment on the market, how to choose a product that really suits your needs is not easy. This article details the key factors to consider when choosing an IP6X test equipment to help you make an informed decision.
Before choosing an IP6X test equipment, you first need to identify your test needs. This includes determining the type, size and weight of the product to be tested, as well as the expected test frequency and test criteria. Different products may require different specifications and performance test equipment to meet their specific dust test requirements. Different products, such as electronic equipment, auto parts, industrial machinery, etc., have huge differences in shape and structure, which will directly affect the internal space requirements of the test equipment.
For example, if you need to test large industrial equipment, you may want to choose a test equipment with large internal space to ensure that the entire product can be accommodated for testing. For small electronic components, a smaller test equipment may be sufficient.
1. Dustproof class

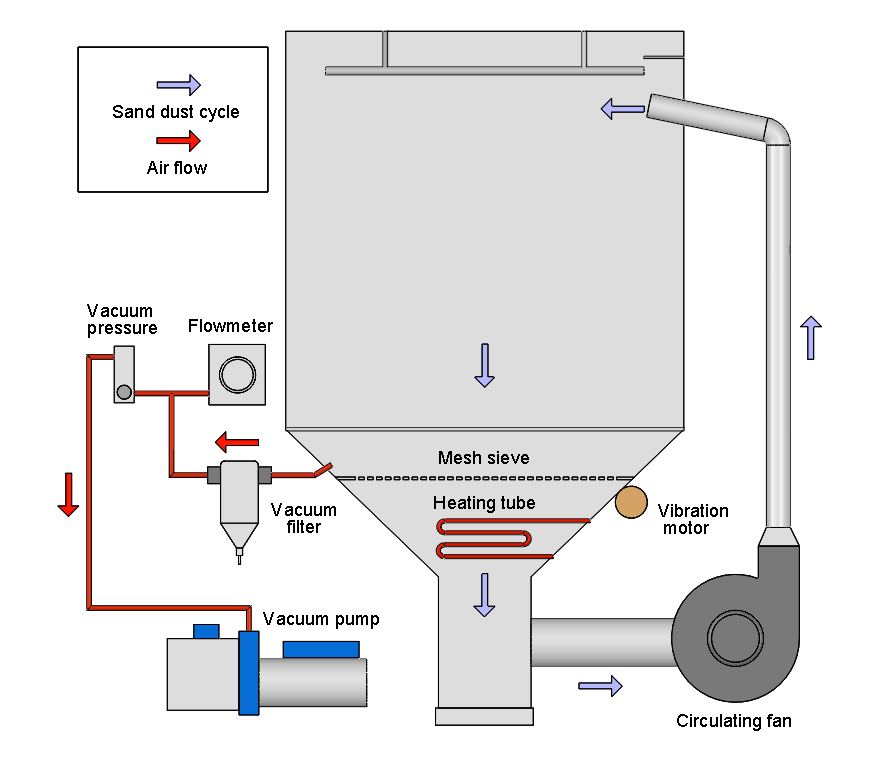

The core task of the IP6X test equipment is to achieve accurate simulation of the IP6x dust class. This means that the test equipment must be able to produce a standard dust environment, including strict control of the dust particle size distribution, concentration uniformity, and the speed of injection. High-quality test equipments are usually equipped with high-precision dust generation and injection systems, which can stably maintain the specified dust conditions and ensure the reliability of test results.
2. Temperature control range
The dustproof performance of some products may vary under different temperature conditions. Therefore, depending on the characteristics of your product, choose a test equipment with the right temperature control range to more fully evaluate the dust resistance of your product. The temperature range of the LIB IP6X test equipment is from normal temperature to 50℃, and the humidity is controlled below 30%RH.
3. Wind speed and pressure
The distribution of wind speed and pressure inside the test equipment has a significant effect on the infiltration and deposition mode of dust. Therefore, understanding the wind speed and pressure parameters that the test equipment can provide in different working modes, and evaluating whether it matches the actual use environment of the product is an important part of choosing the right test equipment. The LIB IP6X test equipment is equipped with an advanced air conditioning system that simulates a wide range of wind speed and pressure conditions to support a more comprehensive and accurate evaluation of dust resistance performance.
1. Equipment structure

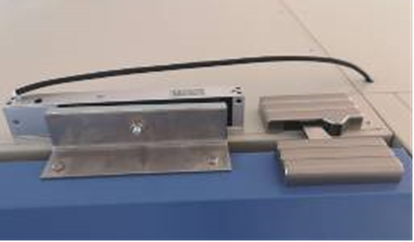

The LIB IP6X test equipment is a robust A3 steel construction with good sealing and stability. The welding process of the equipment should be fine, the weld is uniform and firm, and there are no defects such as leakage welding and porosity. The quality of the sealing strip is directly related to the sealing of the equipment, and the rubber strip with aging resistance, good elasticity and strong sealing should be selected to ensure that it can effectively prevent dust leakage after long-term use and multiple opening and closing. The LIB IP6X test equipment is also equipped with an electromagnetic lock to prevent misoperation and dust ejection during the test.
2. Observation window

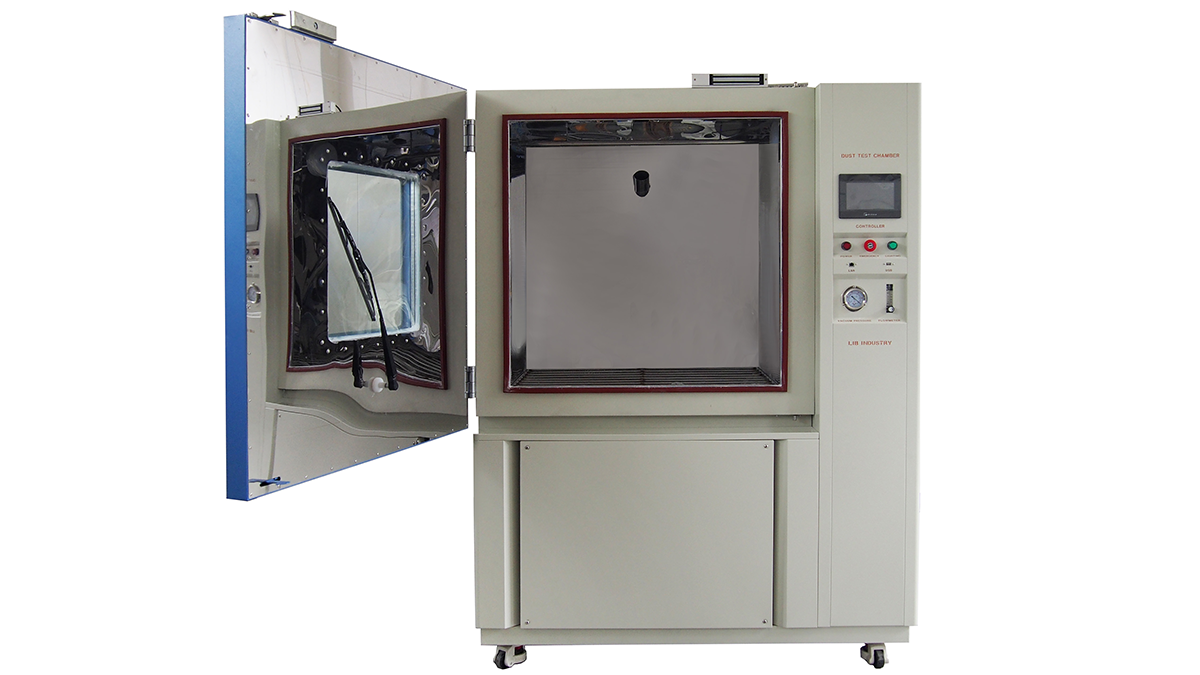

To facilitate the observation of the test process, the test equipment is usually equipped with an observation window. Select an observation window with high transparency, wear resistance and good sealing properties for a clear view of the internal test. The observation window of the LIB IP6X test equipment is also equipped with an automatic brush to wipe dust from the observation window.
3. Material selection

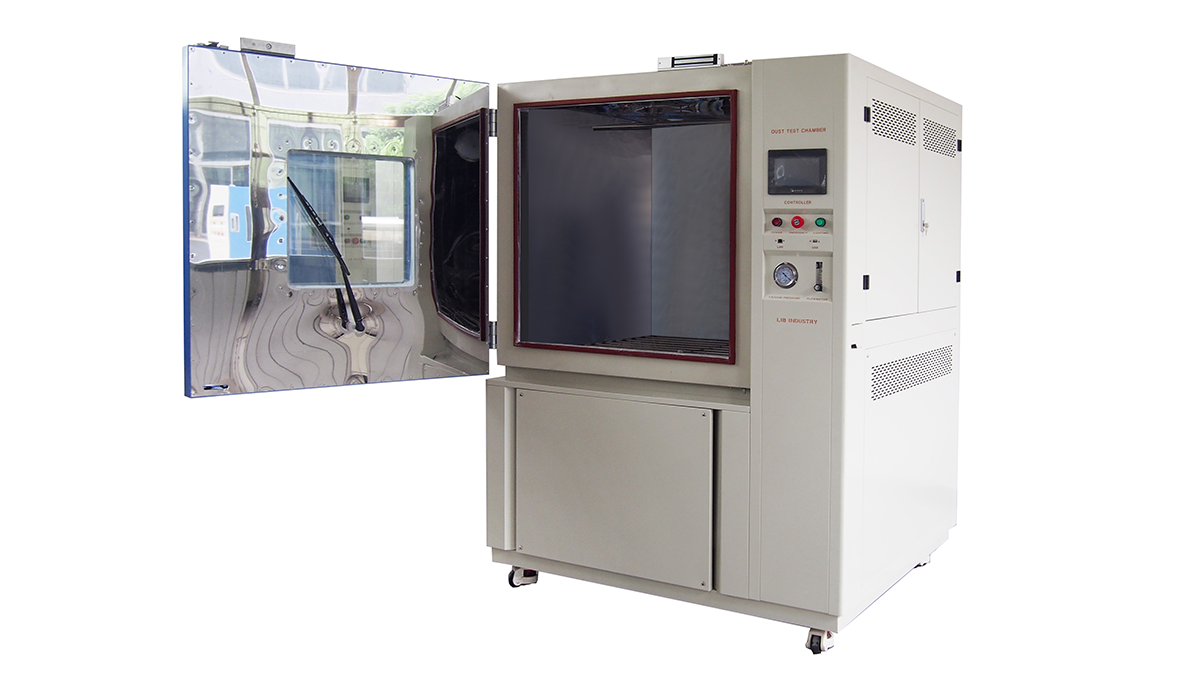

The part of the test equipment in contact with dust should be corrosion-resistant and easy to clean, LIB IP6X test equipment is made of SUS304 stainless steel to prevent dust residue and corrosion of the equipment, mirror material, dust is not easy to adhere, dust is easy to clean. Similarly, for parts that are in direct contact with dust, such as spray guns, air ducts, etc., the LIB IP6X test equipment uses materials with smooth surfaces that are not easy to adhere to dust to reduce dust accumulation and impact on test results.
An advanced control system is essential for the operation and performance of the IP6X test equipment. Intelligent control system should be available:
Accurate parameter setting and control: can accurately set and control temperature, wind speed, dust concentration and other parameters to ensure the accuracy and stability of the test conditions; Data recording and analysis: It can record the data during the test in real time, and has data analysis function to help you evaluate the performance of the product and find potential problems. Fault alarm and diagnosis: When the test equipment fails, it can send an alarm signal in time, and provide fault diagnosis information to facilitate rapid troubleshooting and reduce the impact of test interruption.
Choosing a well-known brand IP6X test equipment can usually guarantee the quality and performance of the product. In addition, quality after-sales service is also a factor that cannot be ignored. Understand the supplier's after-sales service network, response time and repair capabilities to ensure timely and effective support in the event of equipment problems.
Since 2009, Xi 'an LIB Environment has simulated industrial manufacturing and sales environmental test equipments, including design, manufacturing, and global sales and service. We are present in 58 countries around the world and the market is still expanding. Local agents and service centers make it easier for customers to buy and access services. 3 years warranty, lifetime tracking service. In order to ensure that customers receive timely and effective after-sales solutions, LIB's after-sales service centers work together with local service centers to serve customers worldwide.
In short, choosing the IP6X test equipment that suits your needs requires a comprehensive consideration of several factors, including test requirements, performance parameters, structural materials, control systems, brand services, etc. If you are interested in the LIB IP6X test equipment, please click https://www.libtest.com/products/ip-dust-test-chamber/ to learn more, or contact our team inquiry@libtestchamber.com directly to get the best quote and the right solution.
