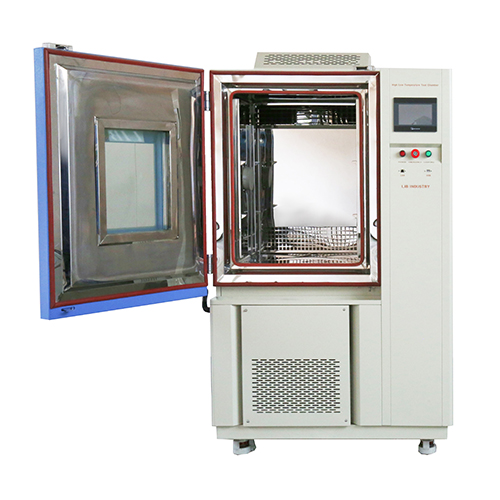

Industrial Oven for Batteries

The industrial oven for batteries creates a precision controlled high temperature environment for high temperature storage, thermal cycling and thermal abuse testing of batteries to meet the stringent requirements of battery testing and manufacturing.  industrial  ovens for batteries with various volumes, with 3 standard models available in different temperature ranges (ambient to 250/400/900℃).

LIB also supplies ventilated ovens, vacuum ovens, tunnel ovens and customized ovens.



Model:O-100,O-225,O-500,O-800,O-1000

Standard:IEC 60216,MIL-810F


Features and Benefits of Industrial Oven for Batteries

1. Real-time temperature monitoring, temperature range can be customized to +1000 ° C, +1200 ° C, accuracy ±0.5 ° C, uniform distribution ±2%.

2. The programmable PID control system supports multi-stage temperature curves for complex loop testing.

3. The enhanced thermal efficiency reduces heating time and minimizes energy consumption.

4. Flexible workroom size and adjustable sample holder to accommodate various battery types and component sizes.

5. High temperature performance testing, thermal aging and durability assessment, safety certification testing, material compatibility analysis.


Specifications of Industrial Oven

Model

O-100

O-225

O-500

O-800

O-1000

Internal Dimension (mm)

400*500*500

500*600*750

700*800*900

800*1000*1000

1000*1000*1000

Overall Dimension (mm)

750*880*850

800*950*1000

1100*1100*1300

1100*1450*1400

1300*1400*1400

Interior Volume

100L

225L

500L

800L

1000L

Temperature Range

A: Ambient ~+250 ℃

B: Ambient ~+400 ℃

C: Ambient ~+900 ℃

Temperature Fluctuation

± 0.5 ℃

Temperature Deviation

± 2.0 ℃

Heating Rate

6 ℃ / min

Heating Element

Nichrome heater

Controller

Programmable color LCD touch screen controller, Ethernet connection

Safety Device

Over-temperature Protection; Over-current Protection;

Phase Sequence Protection; Earth leakage Protection

Exterior Material

Steel Plate with protective coating

Interior Material

SUS304 stainless steel

Thermal Insulation

Polyurethane foam (Refractory brick)

Observation Window

Interior lighting, double-layer thermo stability silicone rubber sealing

Standard Configuration

2 shelves


Details of Industrial Oven for Batteries


Workroom


  • Made of sus304 stainless steel, resistant to corrosion and dust and high temperature.

  • Standard double sample rack, each layer bearing 50kg. The number of sample racks can be customized.

  • A cable hole in the side of the workroom energizes the battery.The number, position and size of the cable holes can be customized.

Heating and circulation systems



  • High power nichrome heater, fast and stable temperature regulation.

  • High temperature axial fan produces forced convection, optimize heat transfer, and ensure uniform temperature in the working room.

Control and monitoring

  • Color programmable controller with multiple language modes. Custom program upgrades.

  • Temperature curve real-time display, historical data export, remote access, remote monitoring and data analysis.

The LIB oven is CE, RoHS certified and complies with international safety standards.

LIB promises a full 3-year warranty, 24/7 technical response, lifetime maintenance guidance, and tailor-made solutions for unique battery testing needs.
