ASTM B117 Chamber

Name: ASTM B117 Chamber
Brand: Xi'an LIB Environmental Simulation Industry

LIB ASTM B117 chamber is used to simulate marine climates or other harsh environments containing salt. The corrosion resistance of materials or products (such as metal coatings, electroplated parts, paint coatings, etc.) is evaluated by spraying a 5% concentration of salt solution on the surface of the material sample being tested.

According to ASTM B117 standard, the spray volume is controlled at 1-2ml /h/80cm², and the temperature parameter is required to be stable at 35℃±1.1℃.

Model: S-150,S-250, S-750, S-010, S-016, S-020

Standard: ASTM B117, ISO 9227, ASTM G85, D17 2028, SAE J2334, ISO4611, ISO7253, IEC 60068-2-11, ASTM G85-02e1 Annex A1, DIN 50021, ASTM B368

ASTM B117 Chamber Features and Benefits

1. Fully standardized closed environment, can accurately control the test salt spray concentration 5%±1%, temperature 35℃±1.1℃ and humidity and other parameters, to ensure the consistency of the test environment.

2. The spray system can atomize the salt solution into a fine mist, and evenly spray on the surface of the sample, so that all parts of the sample receive uniform salt spray corrosion.

3. By measuring the weight change and corrosion area of the sample before and after the test, the degree of corrosion can be quantitatively analyzed.

4. Suitable for corrosion resistance test of various metal materials, coatings, electroplating, etc., and is widely used in many industries such as automotive, aerospace, electronics, and construction.

Specifications of ASTM B117 Chamber

Model	S-150	S-250	S-750	S-010
Internal dimensions (mm)	590470400	1000640500	1100750500	10001300600
Overall dimensions (mm)	14607601140	18509601350	195010301350	2000×1300×1600
Interior Volume (L)	110	320	410	780
Temperature Range	Ambient ～ +60 ℃
Temperature Fluctuation	± 0.5 ℃
Temperature Deviation	± 2.0 ℃
Humidity Range	95% ~ 98% RH
Salt Fog Deposition	1～2ml / 80cm2 · h
Spray Type	Continuous / Periodic
Salt Fog Collected	Fog collector and fog measure cylinder
Air Preheating	Saturated air barrel
Spraying System	Atomizer tower and Spray nozzles
Controller	PID controller
Safety Device	Humidifier Dry-combustion Protection; Over-temperature Protection; Over-current Protection; Water Shortage Protection; Earth leakage Protection
Material	Glass fiber reinforced plastics
Standard Configuration	6 round bars and 5 V-shaped grooves

Configuration of ASTM B117 Chamber

①Workroom	The closed chamber adopts the principle of water seal to avoid the leakage of salt spray. Test sample holder, V-shaped slot and round rod design, adjustable Angle.
②Spray tower	The brine solution is atomized into tiny salt spray particles, and evenly sprayed into the test chamber, composed of nozzles, tower bodies and other parts.

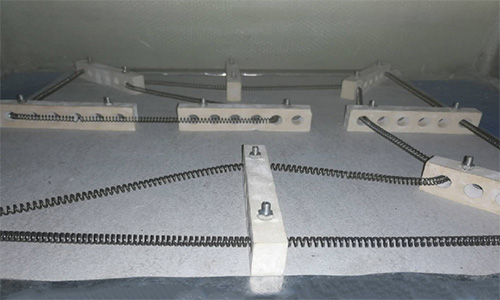

③Heater strip	Nickel-chromium alloy heating wire, located at the bottom of the workroom, long service life.
④Saturated barrel	The compressed air entering the spray tower is preheated and humidified, so that the air reaches the saturated state, and the salt spray is prevented from crystallizing due to temperature change during the spray process.
⑤Controller	Set and control the parameters of the test chamber, such as temperature, time, spray switch, etc.
⑥Salt solution tank	Salt solution storage: used to store 5% sodium chloride solution to provide a salt solution source for spray, and to ensure that the solution is clean and pollution-free.
⑦Air supply(Option)	The compressed air is provided, and the pressure is adjusted by the pressure regulator and other devices into the pressure barrel and nozzle, and the spray pressure is generally 1.00±0.01kgf/cm².
