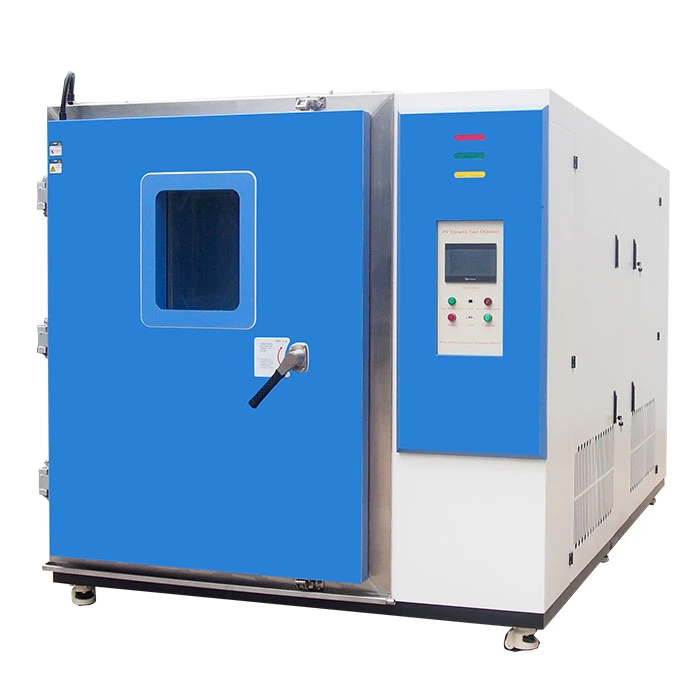

Solar Panel Environmental Chamber

Name: Solar Panel Environmental Chamber
Brand: Xi'an LIB Environmental Simulation Industry

Solar panel environmental chamber is used to test the performance of solar panels under various environmental conditions. temperature ranges from -60 ° C to 100 ° C and humidity ranges from 20%RH to 98%RH. Environmental factors such as salt spray and light can also be installed.

Detect whether the durability, stability and photoelectric conversion efficiency of solar panels are affected by environmental factors.

Model: DHPV-04,PV-04

Standard: IEC 62804,IEC 61215,IEC 61646,IEC 62108,UL 1703,JIS C-8990,C-8991,C-8917,C-8938

Solar Panel Environmental Chamber Features and Benefits

1. Various natural environmental conditions such as high temperature, low temperature, humidity, light, salt spray, rainfall, etc.can be simulated, to provide a reliable environment for the performance test of solar panels.

2. Precise temperature and humidity control, equipped with high precision temperature probe, temperature deviation is controlled at ±2℃, humidity deviation is controlled at ±2.5%RH.

3. Multiple solar panels are accommodated for testing meantime, and environmental parameters can be automatically controlled and adjusted, real-time monitoring of panels and record data, which greatly improves the test efficiency.

4. With multiple safety protection devices, such as over-temperature protection, leakage protection, etc., can effectively prevent safety accidents to ensure the safety of the test process.

Specifications of Solar Panel Environmental Chamber

Model		PV-04
Internal Dimension (mm)		13007001350
Overall Dimension (mm)		190011001750
Interior Volume		1220L
Parameter	Temperature Range	-60℃ ～ +100 ℃
	Temperature Fluctuation	± 0.5 ℃
	Temperature Deviation	± 2.0 ℃
	Humidity Range	20% ~ 98% RH
	Humidity Deviation	± 2.5% RH
	Temperature Change Rate	1 ~ 3.4℃ / Min
	Panel Size	1M*2M
	Panel Capacity	4 / 6 / 8 / 10 / 12 Pieces
	Controller	Programmable color LCD touch screen controller
		Ethernet connection, PC Link, USB
	Humidity	Water supply system	Automatic water supply
		Water supply system	Water purification system
		Humidifier	External isolation, stainless steel surface evaporation humidifier
		Dehumidification	Evaporator
	Sensor	Temperature Sensor	PTR Platinum Resistance PT100Ω/MV A-class, accuracy 0.001℃
		Humidity Sensor	Dry and wet bulb sensor
	Build-in Water Tank(mm)	270300450
	View Window Size(mm)	330*370
	Air Circulation	Centrifugal wind fan
	Safety Device	Humidifier Dry-combustion Protection; Over-temperature Protection; Over-current Protection; Refrigerant High-pressure Protection; Water Shortage Protection; Earth leakage Protection

Configuration of Solar Panel Environmental Chamber

① Workroom	Groove type sample holder design, can adjust the solar panel placement angle. The four walls of the workroom are insulated and sealed to prevent leakage of heat, moisture, etc The internal surface material is SUS304 resistant to corrosion and wear.
② Air circulation system	The centrifugal fan circulates the air in the workroom to avoid local environmental differences and ensure the accuracy of the test results.
③ Heating system	Electric heating wires provide the required temperature for the workroom. Equipped with temperature sensor to monitor temperature in real time.

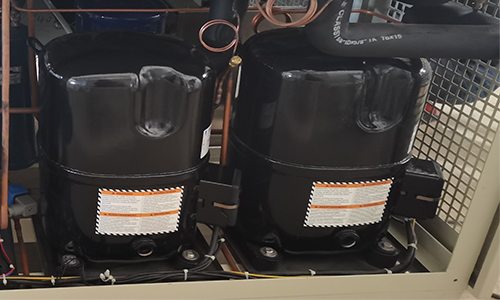

④ Refrigerating system	Used to simulate low temperature environment. Compressor-type refrigeration system including compressor, condenser, evaporator and throttling device.
⑤ Humidity system	Increase the humidity in the working room, using steam humidification to simulate high humidity environments, such as humid climates or tests in battery plate condensation.
⑥ Control System	Various environmental parameters of the test chamber can be set, such as temperature, humidity, light intensity, rainfall, salt spray, etc.
