Xenon Light Fastness Test Chamber Features and Benefits
1. Xenon lamps emit a continuous spectrum from ultraviolet to visible light to infrared, and the spectral distribution of natural sunlight is highly similar. High-power water-cooled, air-cooled xenon arc lamps run smoothly for more than 1600 hours.
2. Precise control of the temperature ranging from ambient to 100℃in the xenon light fastness test chamber and humidity is adjustable from 50%RH to 98%RH. Water spray system can simulate rain weather to check water resistance and color stability.
3. A wide selection of filters such as Daylight Q, Daylight B/B, Window Q, Window B/B filters. These filters only allow specific wavelengths of light to shine on the sample in order to more accurately study the effects of different wavelengths of light on the material.
4. Diverse sample holder design, flat shelf type, rotating drum type, which can be selected according to the shape, size and test requirements of the sample.
Xenon Light Fastness Test Chamber Specifications
Model | XL-S-750 |
Internal Dimension (mm) | 950*950*850 mm |
Overall Dimension (mm) | 1400*1400*1950 mm |
Specimen Holder Size(mm) | 95*200 |
Specimen Capacity | 42pcs |
Chamber Type | Rotating Holder |
Irradiation Source | 1 piece of 4500w water-cooled xenon arc lamp |
Irradiance Range | 35~150 W/㎡ |
Bandwidth Measurement | 300nm~400nm (340nm or 420nm) |
Chamber Temperature Range | Ambient ~ 100 ℃ ±2℃ |
Black Panel Temperature | BPT 35 ~ 85 ℃ ±2℃ |
Humidity Range | 50% ~ 98% RH |
Humidity Deviation | ± 5% RH |
Water Spray Cycle | 1~9999H59M (Adjustable) |
Controller | Programmable color LCD touch screen controller |
Water supply system | Automatic water supply, Water purification system |
Radiometer | UV Radiometer, Tolerance: ±5% |
Cooling System | Mechanical compression refrigeration system |
Configuration of Xenon Light Fastness Test Chamber
①Workroom | Both the workroom interior and multi-layer perforated shelf sample holder are SUS304, The Xenon lamp is located at the top of the workroom.4500W/6500W optional. Option 1: Water cooled xenon lamp By circulating water around the lamp to take away the heat generated, the temperature distribution of the lamp is more uniform, so that the output of light is more uniform and stable. Option 2: Air-cooled xenon lamp The use of air flow, through a fan to blow cold air over the lamp surface.
| |
②Spray system | Water is piped to the sprinkler head, where it is sprayed out under pressure to simulate rain or spray conditions. Spray time, frequency, water and other parameters can be set and adjusted. | |

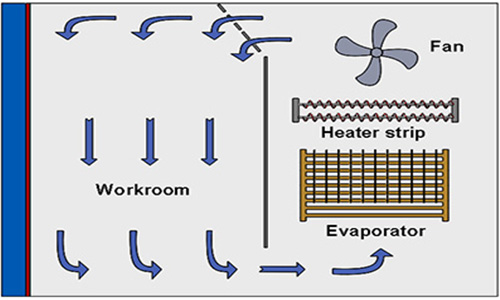

③ Air circulation system | Adopt high and low temperature, low noise air conditioning fan. Air circulates in the test chamber. Avoid high or low local temperature and uneven humidity. | |
④ Heating system | Ni-cr alloy electric heating element is adopted. Fast heating speed and high thermal efficiency. | |
⑤Humidity system | The humidifier increases the humidity in the air through the evaporation of water, and the humidification is uniform and stable. | |
⑥ Control system | The control system can accurately control and adjust the parameters of light intensity, temperature, humidity, spray time, etc., and can be programmed according to the test requirements to realize automatic cyclic testing. | |
⑦ Refrigeration system | Using the principle of compressor refrigeration, through the circulation of refrigerant, the heat in the test box is taken away. Including compressor, condenser, evaporator, throttling device. | |
