Mini Temperature Humidity Chamber

Name: Mini Temperature Humidity Chamber
Brand: Xi'an LIB Environmental Simulation Industry

LIB Industry mini temperature humidity chamber is a small device that can accurately control environmental conditions in the range of -20 ° C, -40 ° C, -70 ° C to +150 ° C temperature and humidity from 20% to 98%RH. The mini temperature humidity chamber owns compact structure and simple operation.

Model: TH-50A ,TH-50B, TH-50C

Standard: AAMA501, ASTM D4169-16, IEC 61215, IEC 61646, IEC61108, IEC62688, MIL-STD-811D

Features and Benefits of Mini Temperature Humidity Chamber

1. Small size, does not take up too much space, easy to place and move in different places such as laboratories and workshops. Suitable for all kinds of small test pieces.

2. As one of environmental chambers for sale at LIB Industry, our small temperature humidity test chamber equipped with high accurate temperature and humidity sensor, the temperature control accuracy can reach ±0.001℃ with PT-100 Class A sensor, and the humidity control accuracy is generally about ± 2.5%RH.

3. The cooling and heating elements, as well as a stable control system, ensure the stability of temperature and humidity during long periods of operation, reducing fluctuations and errors.

4. A variety of safety protection systems such as overload protection, leakage protection, over-temperature protection, water shortage protection.

Specifications of Mini Temperature Humidity Chamber

Model	TH-50	TH-80
Internal Dimension (mm)	320350450	400400500
Overall Dimension (mm)	8201160950	90012101000
Interior Volume	50L	80L
Heat load	1000W
Temperature Range	A : -20℃ ～ +150 ℃ B : -40℃ ～ +150 ℃ C: -70℃ ～ +150 ℃
Temperature Fluctuation	± 0.5 ℃
Temperature Deviation	± 2.0 ℃
Humidity Range	20% ~ 98% RH
Humidity Deviation	± 2.5% RH
Cooling Rate	1 ℃ / min
Heating Rate	3 ℃ / min
Cooling system	Mechanical compression refrigeration system
Controller	Programmable color LCD touch screen controller Ethernet connection
Exterior Material	Steel Plate with protective coating
Interior Material	SUS304 stainless steel
Thermal Insulation	Polyurethane foam and insulation cotton

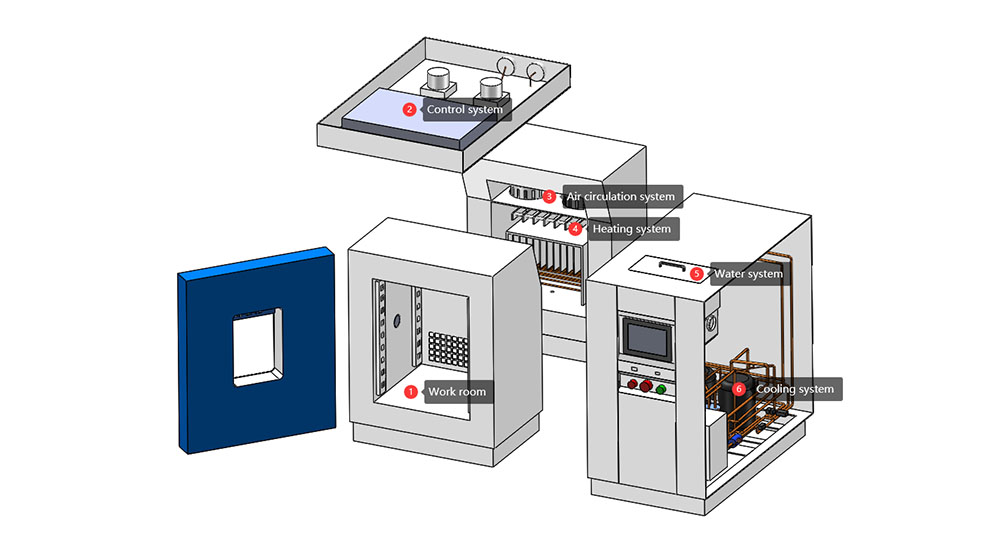

Configuration of Mini Temperature Humidity Chamber

① Workroom	Workroom is SUS304, with good corrosion resistance and thermal conductivity. Equipped with double punched sample holder. Anti-aging silicone rubber ensures chamber sealing.
② Control system	The required temperature and humidity parameters, test time can be set.The control system monitor the T&H changes in real time, and automatically adjust the operating status.
③ Air circulation system	Centrifugal fan powered by a temperature-resistant and low-noise motor, the air in the chamber is inhaled and discharged to form a circulating airflow, contributing to temperature and humidity uniform distribution.
④ Heating system	Ni-cr alloy electric heating element, with high heating efficiency and long service life.
⑤ Water system	Evaporative humidifier, humidifying speed is fast. Water tank equipped with water level sensor.
⑥ Cooling system	Including compressor, condenser, evaporator, throttling device.
