H2S Corrosion Chamber

Name: H2S Corrosion Chamber
Brand: Xi'an LIB Environmental Simulation Industry

H2S corrosion chamber creates a single H2S gas 10 ~ 100ppb ± 20ppb(adjustable) space.The change of temperature and humidity has a great influence on the corrosion of H2S and the wide range of temperature ranging from 15 ℃ to 100 ℃ and humidity ranging from 30% to 98% RH broadens the possibility of H2S material corrosion test.

Diverse models including standard and custom H2S corrosion chamber are available.Shortened lead time and 3-year long full machine warranty, contact us for solutions and quotes.

Model: GC-100, GC-225, GC-500, GC-800, GC-1000

Standard: ISO 6988, ISO 3231, DIN 50018, ASTM G87-02, IEC 60950:22, IEC 60068-2-42, IEC60068-2-6

Features and Benefits of H2S Corrosion Chamber

1. Accurately control the concentration of H2S, ranging from trace to higher concentration, and adjust environmental parameters such as temperature and humidity to simulate a variety of complex actual environments.

2. In addition to H2S gas, it can also be used for corrosion testing of single gases such as SO2,NO2 and CL2.

3. Double-layer hard silicone seal and equipped with electromagnetic lock can prevent H2S leakage and ensure the safety of the experiment.

4. Equipped with an observation window, it is easy to observe the corrosion on the surface of the material in real time, such as whether there are corrosion spots, the formation and development of pits, etc.

Specifications of H2S Corrosion Chamber

Model	GC-100	GC-225	GC-500	GC-800	GC-1000
Internal Dimensions (mm)	400500500	500600750	700800900	80010001000	100010001000
Overall Dimensions (mm)	86010501620	96011501860	118013502010	128015502110	150015502110
Interior Volume (L)	100	225	500	800	1000
Temperature Range	15 ℃ ～ 100 ℃
Temperature Fluctuation	± 0.5 ℃
Temperature Deviation	± 2.0 ℃
Humidity Range	30% ~ 98% RH
Humidity Deviation	±2.5% RH
H2S Concentration	10 ~ 100 ppb ± 20 ppb(Ajustable)
Air Change Rate	3~10 times /h
Cooling system	Mechanical compression refrigeration system
Humidifier	External isolation, stainless steel surface evaporation humidifier
Water Supply System	Water purification system, Automatic water supply
Controller	Programmable color LCD touch screen controller Ethernet connection, PC Link
Gas Sensor	H2S gas sensor
Air Circulation	Centrifugal wind fan
Door Lock	Electromagnetic lock
Gas Exhaust Device	NaOH solution tank
Safety Device	Humidifier Dry-combustion Protection; Over-temperature Protection; Over-current Protection; Water Shortage Protection; Earth leakage Protection
Interior material	SUS304 stainless steel +Glass fiber reinforced plastics
Exterior material	Steel Plate with protective coating

Configuration of H2S Corrosion Chamber

1. Workroom	SUS 316 material,rust-proof to temperature, moisture and H2S gas corrosion resistance. Double-layer perforated sample holder, the height is adjustable and can be removed directly. High precision temperature and humidity sensor.
2. Air circulation system	The powerful fan makes the air flow in the chamber to ensure the uniform concentration of temperature, humidity and H2S.
3. Heating system	Electric heating wire, accurate temperature control, to meet the corrosion test needs of different temperatures.
4. Cooling system	It works when low temperature environment or heat dissipation is required, and maintains low temperature stability through compressor refrigeration and refrigerant circulation.
5. Humidity system	Increase the humidity in the chamber and use steam humidification to simulate high-humidity corrosion environment.
6. Gas system-H2S probe	Real-time monitoring of H2S concentration to provide basis for control and alarm.

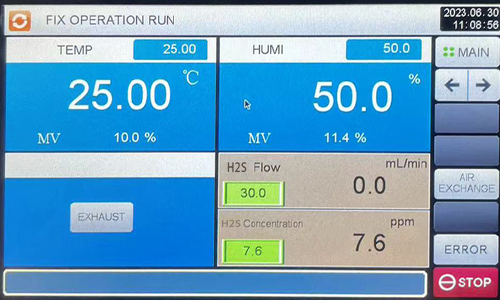

7. Control system	Set, regulate temperature and humidity, H2S concentration and other parameters to achieve automatic operation.
8. Exhaust system	NaOH solution diluted H2S exhaust gas, timely exhaust gas, to ensure the safety of the test.
