IPX1 IPX2 IPX3 IPX4 Rain Test Machine

Name: IPX1 IPX2 IPX3 IPX4 Rain Test Machine
Brand: Xi'an LIB Environmental Simulation Industry

Drip Tray Size：600*600 1000*1000

Spraying Hole Diameter：φ0.4mm

Hole Spacing：50 mm

Swing angle of Oscillating Tube：0 ~ ±180° (Adjustable)

Turntable Rotation Speed：1r/min (Adjustable speed)

The IPX1 IPX2 IPX3 IPX4 rain test machine integrates four waterproof levels, including IPX1 (vertical dripping), IPX2 (15° inclined dripping), IPX3 (dripping), IPX4 (splashing) four different scenarios, which can evaluate the waterproof level of electronic appliances, outdoor lamps, auto parts, consumer electronics and other products. Efficiently verify product tightness and durability in different environments. The IPX1 IPX2 IPX3 IPX4 rain test machine complies with IEC 60529, ISO 20653 and other international standards.

Key Features of IPX1 IPX2 IPX3 IPX4 Rain Test Machine

1. Multi-scene waterproof test capability,IPX1-2 vertical/inclined dripping,IPX3-4 dripping/splashing

2. High precision flow meter automatically adjusts the water volume to meet the flow requirements of different levels of IPX1-4.

3. Safety protection: leakage protection switch, emergency stop button, water shortage alarm to ensure the safety of operators.

4. Water circulation system, built-in filter device, to achieve water recycling, reduce waste.

5. The main body and key components (such as nozzles and pendulum tubes) are made of SUS304 stainless steel, which can withstand humid environment for a long time.

6. Rotating turntable (adjustable speed) with waterproof power supply, water can be evenly sprayed on the surface of the test

Specifications of IPX1 IPX2 IPX3 IPX4 Rain Test Machine

Model	R-800C	R-1200C
Internal Dimensions (mm)	900950950	130013501370
Overall Dimensions (mm)	118014201920	154018202200
Useful Volume (L)	810	2400
Oscillating Tube Radius	400mm	600mm
Drip Tray Size	600*600	1000*1000
Spraying Hole Diameter	φ0.4mm
Hole Spacing	50 mm
Swing angle of Oscillating Tube	0 ~ ±180° (Adjustable）
Turntable Rotation Speed	1r/min (Adjustable speed)
Water Pressure Control	Flow meter
Controller	Programmable color LCD touch screen controller, Ethernet connection
Water supply system	Water tank, booster pump, Automatic water supply, Water purification system
Safety Device	Over-temperature Protection; Over-current Protection; Water Shortage Protection; Earth leakage Protection; Phase Sequence Protection
Exterior Material	Steel Plate with protective coating
Interior Material	SUS304 stainless steel
Observation Window	Double layer insulating glass with wiper

Details of IPX1 IPX2 IPX3 IPX4 Rain Test Machine

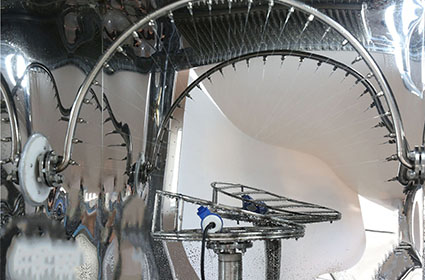

IPX1 X2 drip tray vertical/tilting drip	IPX3-4 oscillating tube shower/splash
The drop water tank adopts vacuum design, nozzle aperture φ0.4mm, hole distance 20×20mm, to ensure uniform dripping. The sample platform supports automatic tilt switching of 0°/15° to accurately simulate natural rainfall. IPX1 water quantity: 1.0±0.5mm/min; IPX2 water quantity: 3.0±0.5mm/min.	The radius of the oscillating tube can be R200mm~R1000mm, the swing angle is ±60° (IPX3) or 360° (IPX4), and the water flow is fully covered. IPX3 water volume: 0.7±0.05L/min; angle: ±60°; IPX4 splash water: 1.0±0.05L/min; angle: 360°.

Intelligent control system	Built-in water circulation system
Color touch screen, interface support multi-language switching, to meet the needs of global customers. Real-time display of test parameters (support for custom test programs). Built-in USB/RS485 interface, test data can be exported to a PC, supporting remote monitoring and data analysis.	Automatic water supply system ensures adequate water supply, automatic testing, tank equipped with high and low water level float. A series of water pipes are arranged in the rain test machine to form a water circulation system, which greatly reduces the water consumption. Automatic filtration device ensures smooth testing of dripping and rain.

LIBIPX1 IPX2 IPX3 IPX4 Rain Test Machine through CE, RoHS, ISO 9001 certification, can also be customized caseless equipment, other customization options: size, other waterproof grade functions to add, test fixtures, etc.

For more configuration, quotation or technical details, please contact LIB- Waterproof Testing Solutions specialist.
