IP6X IP5X Ingress Test Chamber

Name: IP6X IP5X Ingress Test Chamber
Brand: Xi'an LIB Environmental Simulation Industry

IP6X IP5X ingress test chamber is used to test products’ dustproof ability under IEC 60529,vertical dust circulating system adopts 50 μm diameter of dust to simulates dusty environment with controllable temperature ranging from ambient to +50℃,the dust can be collected and reused,dust concentration is adjustable within 2kg ~ 4kg/m³ talcum powder.

Diverse sizes and models can be choose according to your test specimens real situation,whether standard and customized LIB IP6X IP5X ingress test chamber both enjoy 3 years warranty,welcome to quote!

Model: DI-800, DI-1000, DI-1500, DI-2000

Standard: IEC 60529, IP5X, IP6X, ISO20653, IEC 60068-2-68, IEC 60598, MIL-STD-810G

Features and Benefits of IP6X IP5X Ingress Test Chamber

1. Vertical circulation air blows dust to the workroom, forming a dust circulation system, dust can be recycled

2. Different size and configuration ranging from 200 liters to to any customized liters.

3. IEC60529 of IP5X and IP6X, ISO20653, IEC 60068-2-68, ASTM and MIL standards.

4. The IP6X IP5X ingress test chamber simulates an environmental condition to test the exposure of electronic components to concentrated levels of dust in order to validate product seal integrity.

Specifications of IP6X IP5X Ingress Test Chamber

Model	DI-800	DI-1000	DI-1500	DI-2000
Internal Dimension (mm)	80010001000	100010001000	100015001000	100020001000
Overall Dimension (mm)	104014501960	133014501960	133019501990	133024501990
Useful Volume (L)	800	1000	1500	2000
Temperature Range	Ambient ~ +50℃
Humidity Range	< 30% RH
Normal Wire Diameter	50um
Nominal Width of a Gap Between wires	75um
Fight Time	0 ~ 99H59M
Blowing Time	0 ~ 99H59M
Specimen Power Outlet	Dust-proof socket 16A
Controller	Programmable color LCD touch screen controller, Ethernet connection
Safety Device	Over-temperature Protection; Over-current Protection; Earth Leakage Protection; Phase Sequence Protection
Exterior Material	A3 Steel Plate with protective coating
Interior Material	SUS304 stainless steel
Standard Configuration	Sample shelf, dust wiper, talcum powder(5kgs)
Power	AC380V 50Hz

Configuration of IP6X IP5X Ingress Test Chamber

1. Workroom	By extracting the air in the product, the dust-proof condition of the product under different pressure environments is simulated, and the sealing performance of the product is tested.

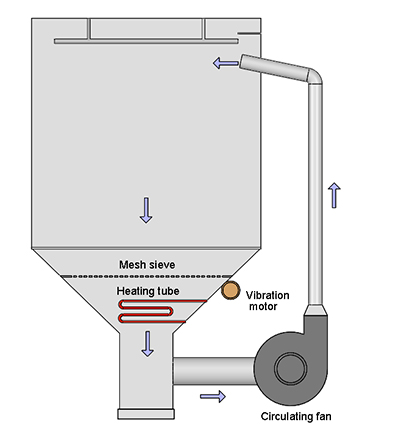

2. Dust circulation system	"O" type closed vertical dust blowing circulation system, so that the dust evenly dispersed. It is equipped with a dust storage device to accommodate the dust of the screen line diameter 50um and the nominal spacing between the lines 75um.
3. Control system	LCD touch screen, programmable, easy to operate, can control temperature, dust blower, dust vibration, vacuum, power on and off and test time.
4. Heating system	Dehumidifying the dust to prevent the dust from being damp and caking, affecting the test effect, and preheating the chamber before the test to ensure that the test environment meets the requirements.

1. Vacuum filter	Filter the extracted gas to prevent dust from entering the vacuum pump and other equipment, and protect the equipment while avoiding dust emission to the environment.
2. Vacuum pump	By extracting the air in the product, the dust-proof condition of the product under different pressure environments is simulated, and the sealing performance of the product is tested.
3. Vibrating motor	The dust attached to the wall of the chamber and the dust storage device is dropped by vibration to prevent dust condensation and accumulation.
4. Circulating fan	The dust in the workroom forms a vertical circulation of air, so that the dust is evenly distributed in the workroom space.
