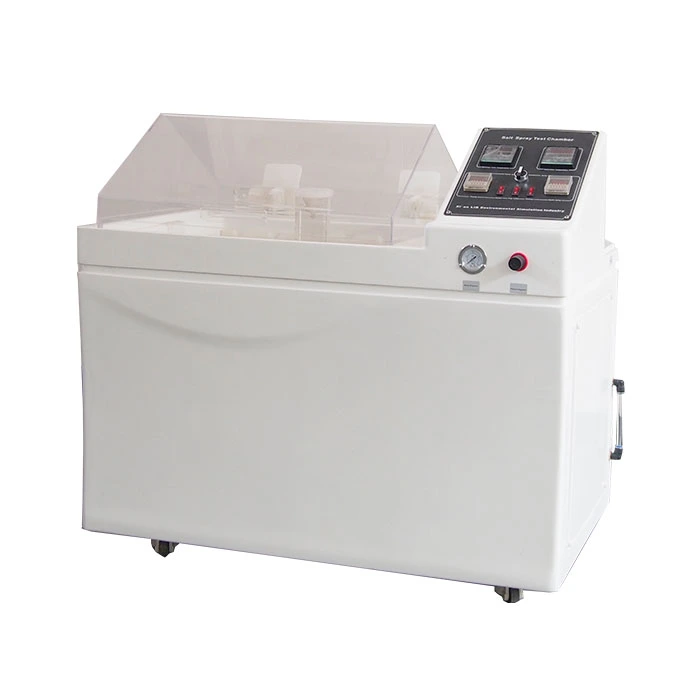

Salt Fog Chamber

Name: Salt Fog Chamber
Brand: Xi'an LIB Environmental Simulation Industry

LIB salt fog chamber helps determine how well the material can withstand exposure to saltwater or other corrosive substances in real-world applications.Basic and continuous salt spray tests can be performed, such as ASTM B117, ISO 9227 and similar international test standards.A large selection of salt fog chamber to accommodate various types of product testing.

Model: S-150,S-250, S-750, S-010, S-016, S-020

Standard: ASTM B117, ISO 9227, ASTM G85, D17 2028, SAE J2334, ISO4611, ISO7253, BS3900-F12, IEC 60068-2-11, DIN 50021, ASTM G85-02e1 Annex A1,BS 7479, ASTM B368

Salt Fog Chamber Features and Benefits

1. Salt fog chamber cover adopts inverted triangular groove design, spray condensation water can be flowed to sides, will not affect the test piece.

2. The material of salt fog chamber has a big update for older material PVC with stronger corrosion and high temperature resistance, one-time forming, reinforced design, long service life.

3. The salt fog environment is stable, and the concentration, temperature, humidity and other key parameters of the salt spray can be maintained within the set range for a long time. Ensure that the corrosive effect on the material is uniform and predictable.

4. LIB Industry Salt fog chamber can carry out NSS, AASS and CASS test and meet the requirements of basic and continuous salt spray test.

5. More than 16 different models of salt fog corrosion chambers are available for all types of product testing, while also supporting customization.

Salt Fog Chamber Specifications

Model	S-150	S-250	S-750	S-010
Internal dimensions (mm)	590470400	1000640500	1100750500	10001300600
Overall dimensions (mm)	14607601140	18509601350	195010301350	2000×1300×1600
Interior Volume (L)	110	320	410	780
Temperature Range	Ambient ～ +60 ℃
Temperature Fluctuation	± 0.5 ℃
Temperature Deviation	± 2.0 ℃
Humidity Range	95% ~ 98% RH
Salt Fog Deposition	1～2ml / 80cm2 · h
Spray Type	Continuous / Periodic
Salt Fog Collected	Fog collector and fog measure cylinder
Air Preheating	Saturated air barrel
Spraying System	Atomizer tower and Spray nozzles
Controller	PID controller
Safety Device	Humidifier Dry-combustion Protection; Over-temperature Protection; Over-current Protection; Water Shortage Protection; Earth leakage Protection
Material	Glass fiber reinforced plastics
Standard Configuration	6 round bars and 5 V-shaped grooves

Configuration of Salt Fog Chamber

S-150

①Workroom	the standard sample rack is a round rod and V-shaped slot, and the placement Angle of test parts can be adjusted. Custom sample holders are also available for special-shaped test pieces. Once the workroom lid is closed, seal it with water to further prevent salt spray leaks.
②Salt spray collector	Measuring the settling amount of salt spray is mainly composed of funnel cups and conduits. After the salt spray condenses into water in the funnel cup, it flows through the pipe to the measuring cylinder outside the salt fog chamber for reading and recording the settling amount of the salt spray.
③Spray tower	Make sure the salt spray is evenly distributed throughout the workroom. Quartz nozzle inside.
④Heater strip	Located at the bottom of the workroom, it provides the required heat for the workroom.
⑤Controller	Set and control test parameters, such as temperature, spray time, test period, etc. At the same time, the running state of the salt fog corrosion chamber is monitored and controlled in real time, and the alarm signal is sent when abnormal conditions occur.
⑥Salt solution tank	The brine solution required for the salt spray test is stored and supplied, and the salt tank is equipped with a stirring device to ensure a uniform brine concentration.
⑦Saturated barrel	The air entering the spray tower is filtered, warmed and humidified so that the air reaches a saturated state and then transported to the nozzle for spraying.
⑧Air source	Compressed air is provided to the salt spray test chamber as the power source of salt spray injection.
