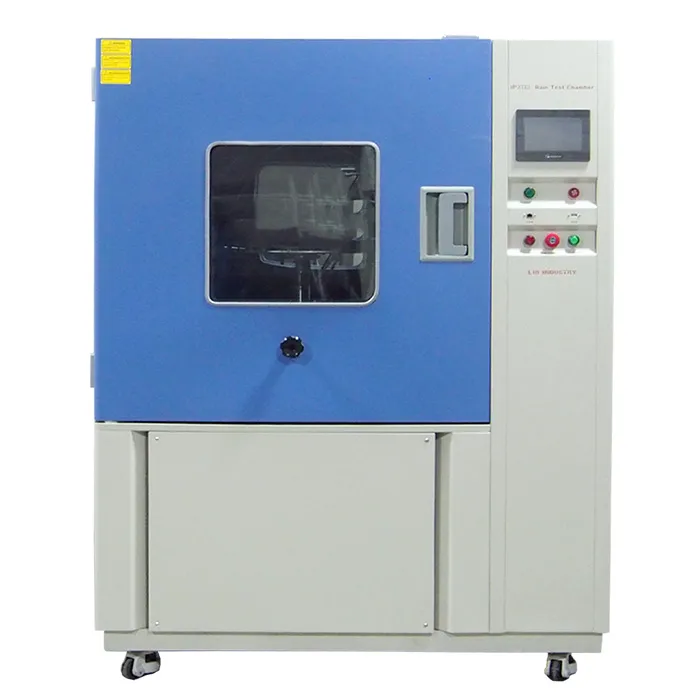

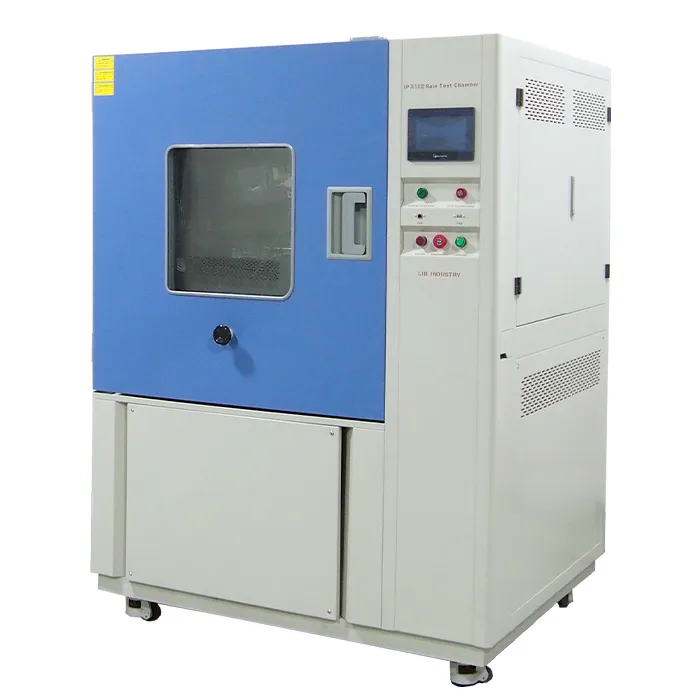

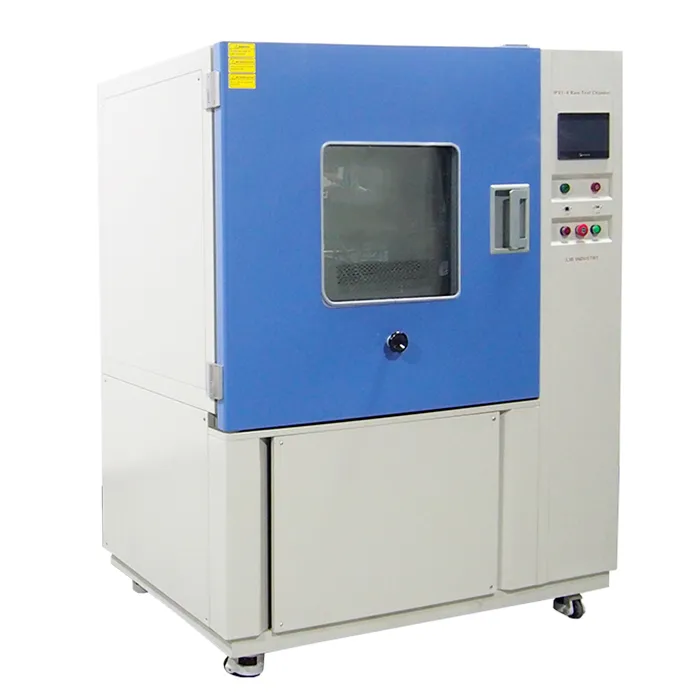

IPX1 IPX2 Water Drip Test Apparatus

Name: IPX1 IPX2 Water Drip Test Apparatus
Brand: Xi'an LIB Environmental Simulation Industry

The IPX1 IPX2 water drip test apparatus simulates dripping in a natural environment to evaluate the water resistance of the product under different dripping conditions. IPX1: simulates vertical dripping,IPX2: simulates dripping at a tilt of 15°.

LIB IPX1 IPX2 water drip test apparatus can be customized according to the size of the workroom, more than the same industry warranty period, complete after-sales policy, welcome to consult LIB.

Model：R12-800C,R12-1200C

Standard: ISO 20653, IEC 60529, UL 50E, UL 1598, UL 153, UL1573, UL 60950-1, IPX1, IPX2

Features and Benefits of IPX1 IPX2 Water Drip Test Apparatus

1. Accurately simulate IPX1 vertical drip with a drip rate of 1mm/min±0.5mm/min and the test duration of 10 minutes, and IPX2 tilt 15° drip scenario with a drip rate of 3mm/min±0.5mm/min, the test needs to be carried out at each of the four fixed tilt positions for 2.5 minutes.

2. Equipped with automatic intake and water circulation system, the water circulation system can filter out impurities up to 0.03mm diameter.

3. The main components such as drip water tank, workroom, turntable, etc., are made of SUS 304 stainless steel, which is corrosion-resistant.

4. Equipped with leakage protection, low water level alarm and other safety devices to ensure the safety of operators and equipment.

Specifications of IPX1 IPX2 Water Drip Test Apparatus

Model	R-800C	R-1200C
Internal Dimensions (mm)	900950950	130013501370
Overall Dimensions (mm)	118014201920	154018202200
Useful Volume (L)	810	2400
Drip Tray Size	600*600	1000*1000
Spraying Hole Diameter	φ0.4mm
Turntable Rotation Speed	1r/min (Adjustable speed)
Water Pressure Control	Flow meter
Controller	Programmable color LCD touch screen controller, Ethernet connection
Water supply system	Water tank, booster pump, Automatic water supply, Water purification system
Safety Device	Over-temperature Protection; Over-current Protection; Water Shortage Protection; Earth leakage Protection; Phase Sequence Protection
Exterior Material	Steel Plate with protective coating
Interior Material	SUS304 stainless steel
Observation Window	Double layer insulating glass with wiper

Configuration of IPX1 IPX2 Water Drip Test Apparatus

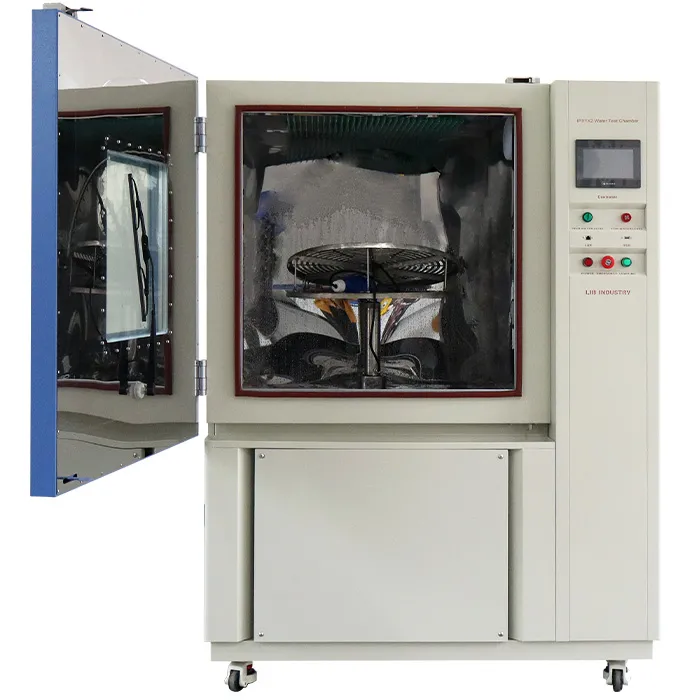

1. Workroom

The drip tray is located at the top of the workroom, and the test water is stored inside, and the drip needles are evenly distributed at the bottom. The aperture is 0.4mm and the hole spacing is 20mm.
Sample turntable height is adjustable. When performing IPX1 test, the turntable is in a horizontal position; During the IPX2 test, the turntable should be tilted 15° to both sides in the vertical direction.

2. Control system

PLC programmable controller with touch screen, can set drip speed, test time, turntable speed, real-time monitoring of the test process.

3. Water supply and circulation system:

Including water tanks, pumps and filters.
The water tank stores water, and the pump pumps the water to the drop tray to realize the recycling of water, and the filter prevents the blockage of the drip hole.
