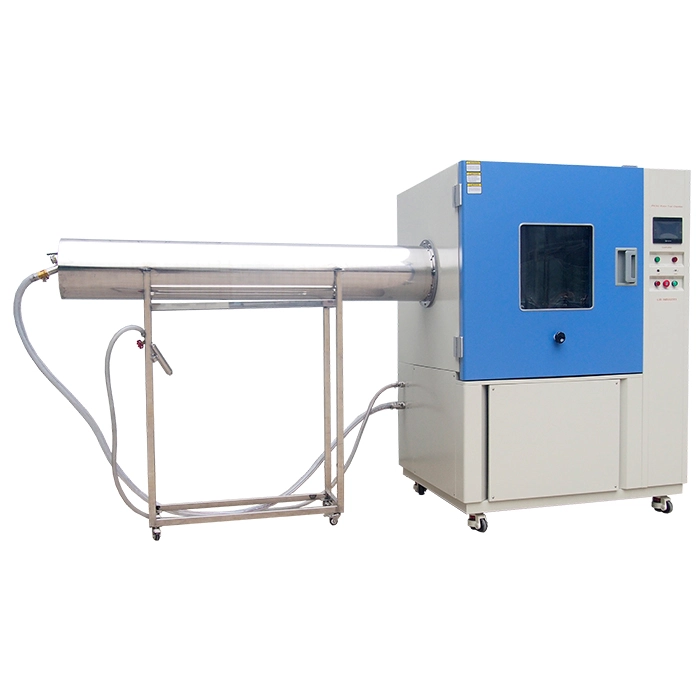

IPX5 Shower

Name: IPX5 Shower
Brand: Xi'an LIB Environmental Simulation Industry

IPX5 shower is in line with the IEC60529 standard IPX5 grade waterproof test equipment, after the IPX5 shower’s test,on behalf of its can prevent the injection of water intrusion, that is, the product can prevent from the nozzle of the water intrusion caused by damage.

The distance between the test sample and the spray nozzle is 2.5m-3m, the water flow is 12.5L/min (750L/h), and the spray pressure is usually between 30kPa-150kPa.

Model: R56-800

Standard: IEC 60529, IPX5, IPX6, ISO20653, IEC 60068-2-68, IEC 60598, MIL-STD-810G, GJB 150.8-86, ISO 20653, UL 50E, UL 1598, UL 153, UL1573, UL 60950-1

Features and Benefits of IPX5 Shower

1. One can realize two kinds of waterproof level test, IPX5 Shower can carry out IPX5 IPX6 test, equipped with two kinds of nozzles.

2. IPX5 Shower can imitate low-pressure jet water, water intrusion in daily life such as faucet spray, moderate rain and other scenes, and can also simulate strong jet water, such as heavy rain, big waves and other harsh strong water environment.

3. The use of durable material, the external is 4mm A3 steel plate, the internal material is SUS304, which ensures that the structure is stable and not easy to damage under long-term use and water impact.

4. Standardized and customized IPX5 Shower according to your needs for you to choose, all test chambers can pass CE,CSA,UL,RHOS certification.

Specifications of IPX5 Shower

Model		R56-800
Workroom dimension (mm)		800800800 DWH
External dimension (mm)		95031501800 DWH
Interior Volume (L)		510
Diameter of Turntable (mm)		600
Turntable loads		20kgs Max
Parameter	Turntable Rotation Speed	0~7r/min (Adjustable)
	Internal Diameter of IPX5 Nozzle	6.3mm
	Internal Diameter of IPX6 Nozzle	12.5mm
	Water Flow Rate IPX5/ IPX6	12.5L/min ±5% / 100L/min ±5%
	Build-in Water Tank(mm)	370375950
Environmental Conditional		5℃～+35 ℃ ≤85% RH
Standard		IEC 60529, ISO20653

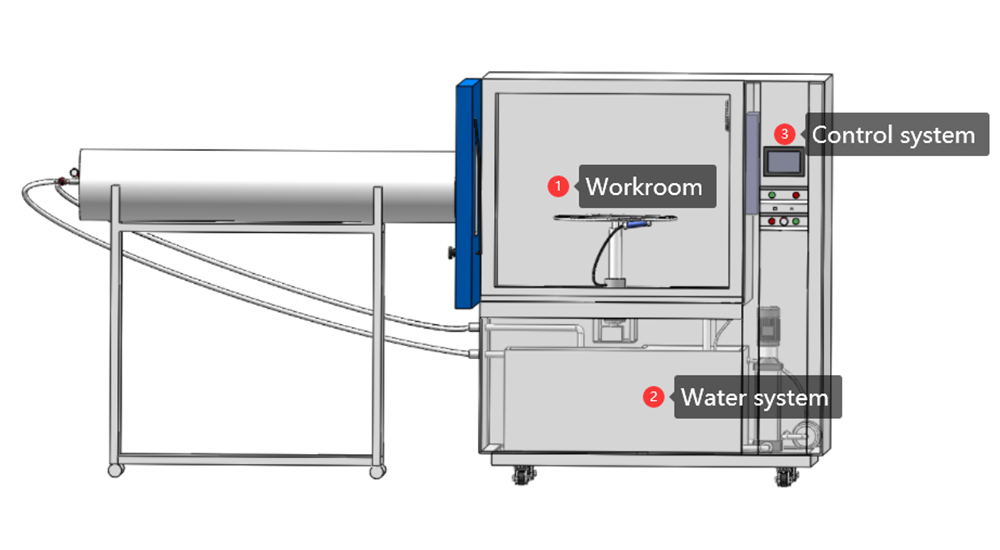

Configuration of IPX5 Shower

1. Workroom	The IPX5 nozzle has an inner diameter of 6.3mm and the IPX6 nozzle has an inner diameter of 12.5mm and is made of SUS304 corrosion-resistant material. The spray pipe connects the nozzle and the water pump. Nozzle support fixed nozzle, height adjustable. The rotating turntable is used to place the product under test. The diameter is 600mm and the speed can be adjusted in the range of 0-7r/min.
2. Water system
① Filter	The ejected water is returned through the workroom drain to form an automatic water circulation and water filtration system that removes impurities up to 0.03mm.
② Water tank	SUS304 material, equipped with water level float ball valve, can automatically control water intake, and low water level monitoring device.
③ Water pump	Stainless steel centrifugal pump meets the requirements of IPX5 spray flow of 12.5±0.625L/min and IPX6 spray flow of 100±5L/min. Water spray flow can be controlled.
④ Sensor	The flow is monitored in real time, and the flow value is transmitted to the PLC controller for display on the man-machine interface.

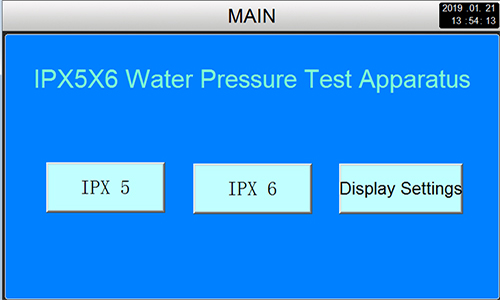

3. Control system	Realize the test flow control, test time, control turntable speed and positive and negative rotation, control sample power supply on and off, etc. Color touch screen, easy to operate, programmable test process.
