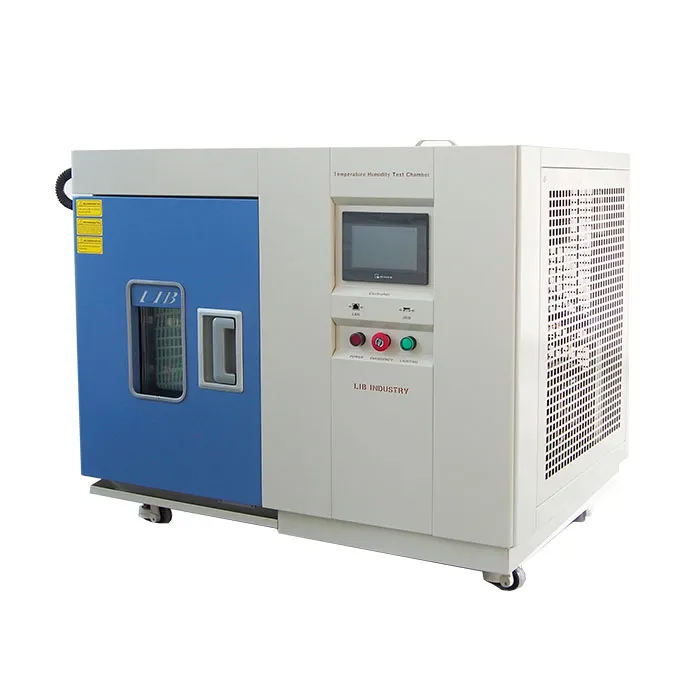

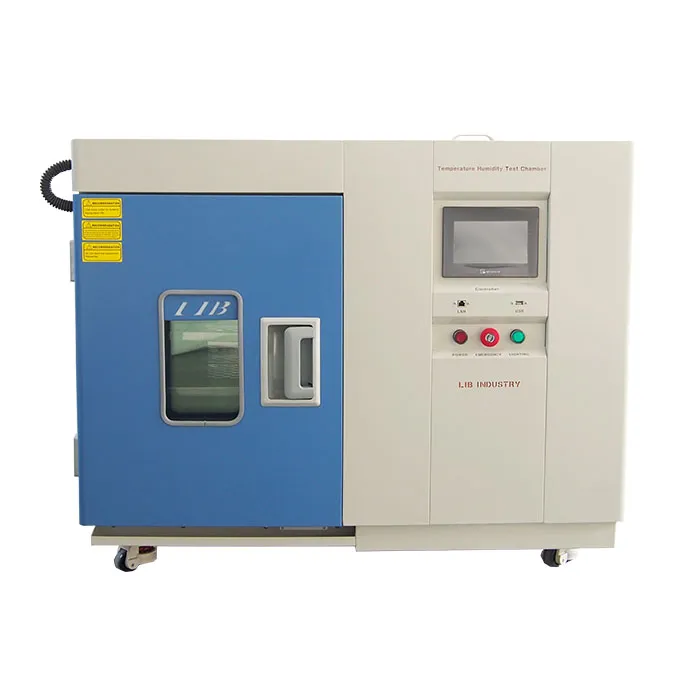

Humidity Calibration Chamber

Name: Humidity Calibration Chamber
Brand: Xi'an LIB Environmental Simulation Industry

LIB humidity calibration chamber provides accurate and stable humidity control and can be used as humidity calibration.It can be set to a fixed humidity, or set the cyclic change of humidity to meet a variety of humidity calibration needs,enabling comparison against reference standards to ensure measurement traceability.

Ultra-wide humidity range: 20%RH to 98%RH, humidity deviation is controlled at ±2.5%RH.

Model: TH-100C, TH-225C, TH-500C, TH-800C, TH-1000C

Standard: AAMA501, ASTM D4169-16, IEC 61215, IEC 61646, IEC61108, IEC62688, MIL-STD-812D

Humidity Calibration Chamber Features and Benefits

1. Humidity accuracy within ± 2.5%RH, temperature and humidity coordination, avoid cross interference, improve calibration reliability.

2. Full range calibration from very low (20% RH) to very high humidity (98% RH +). Calibrate humidity, temperature and even air pressure at the same time (low pressure test chamber).

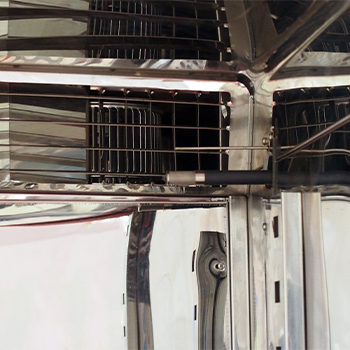

3. Internal fan and air duct design ensures that temperature and humidity are evenly distributed in the space to avoid local deviations.

4. The sealed chamber is insulated from external environment fluctuations with 10cm thermal insulation foam to ensure test stability.

Specifications of Humidity Calibration Chamber

Name	Humidity Calibration Chamber
Model	TH-100	TH-225	TH-500	TH-800	TH-1000
Internal Dimension (mm)	400500500	500600750	700800900	80010001000	100010001000
Overall Dimension (mm)	90010501620	100011401870	120013402020	130015402120	150015402140
Interior Volume	100L	225L	500L	800L	1000L
Heat load	1000W
Temperature Range	A : -20℃ ～ +150 ℃ B : -40℃ ～ +150 ℃ C: -70℃ ～ +150 ℃
Temperature Fluctuation	± 0.5 ℃
Temperature Deviation	± 2.0 ℃
Humidity Range	20% ~ 98% RH
Humidity Deviation	± 2.5% RH
Cooling Rate	1 ℃ / min
Heating Rate	3 ℃ / min
Cooling system	Mechanical compression refrigeration system
Refrigerating unit	French TECUMSEH compressor
Heating Element	Nichrome heater
Controller	Programmable color LCD touch screen controller, Ethernet connection
Water supply system	Automatic water supply, Water purification system
Humidifier	External isolation, stainless steel surface evaporation humidifier
Safety Device	Humidifier dry-combustion protection; over-temperature protection; over-current protection; Refrigerant high-pressure protection; Water shortage protection; Earth leakage protection
Exterior Material	Steel Plate with protective coating
Interior Material	SUS304 stainless steel
Thermal Insulation	Polyurethane foam and insulation cotton
Observation Window	Interior lighting, double-layer thermo stability silicone rubber sealing
Standard Configuration	1 Cable hole with plug; 2 shelves

Details of Humidity Calibration Chamber

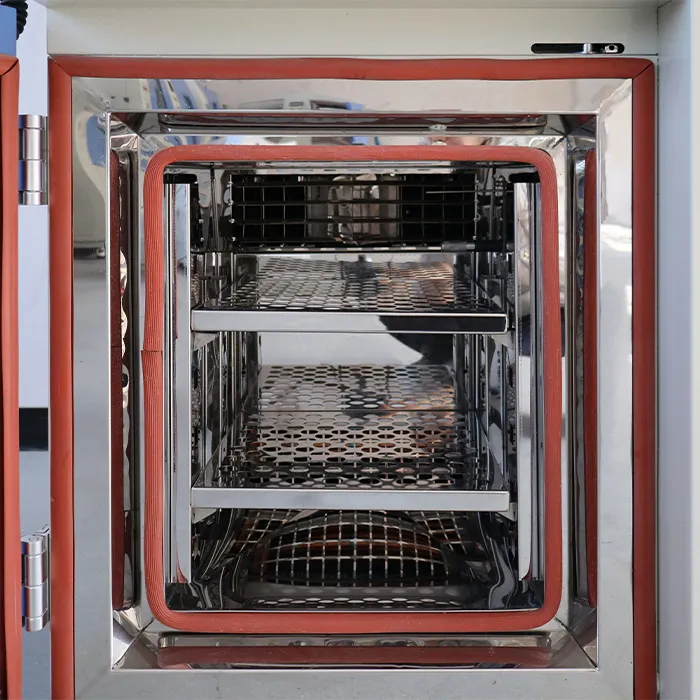

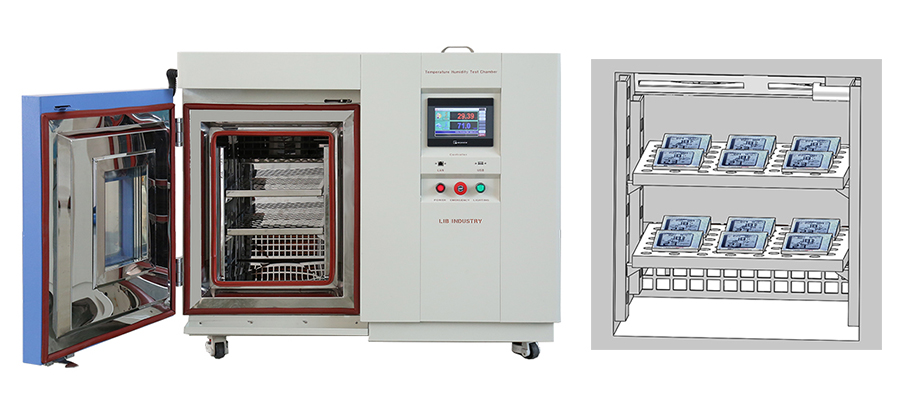

Wide temperature and humidity control.	Workroom sample rack can be removed, the number can be customized.

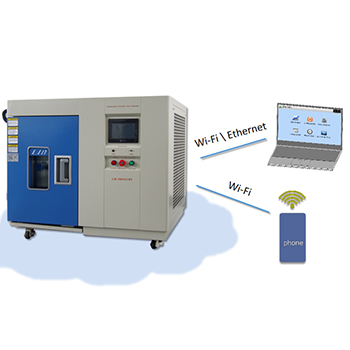

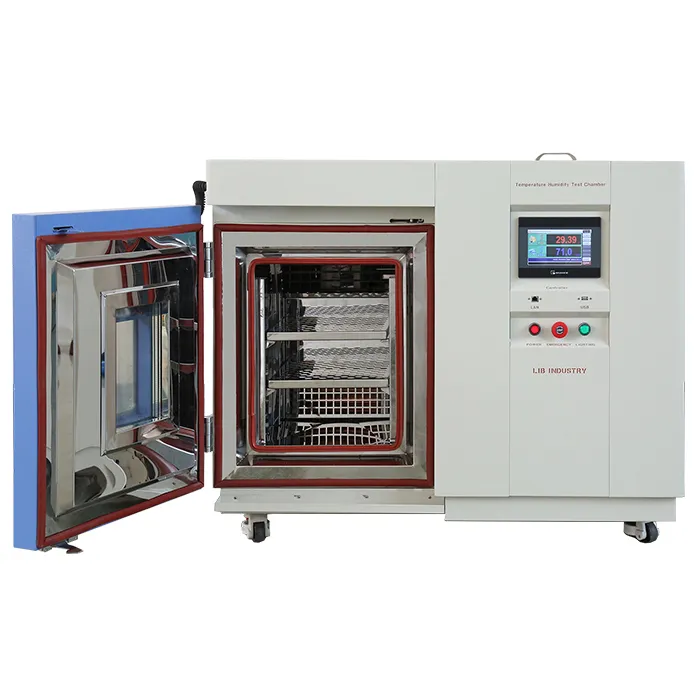

Remote control, through the network, wireless communication, to ensure data and transmission stability.	Large area viewing window + lighting for easy observation of the calibration of test parts.

LIB has a 3-year long warranty period and lifelong service, and five service centers around the world ensure that customers can get timely and professional technical services to guarantee your testing. If you are interested, please let us know your requirements and the LIB team will give you the latest information and the best offer.
