Mixed Gas Test Chamber

Name: Mixed Gas Test Chamber
Brand: Xi'an LIB Environmental Simulation Industry

LIB mixed gas test chamber can perform single H2S/NO2/CL2/SO2 noxious gas tests or combined gas tests in varying TH environments.The product is subjected to accelerated corrosion testing using gas and temperature ranging from 15 ℃ to 100℃ and humidity ranging from 30% to 98%RH environments to reproduce material damage.

H2S/NO2/CL2/SO2 gas concentration can be automatically adjusted and controlled, complete gas dilution system, LIB mixed gas test chamber can also equip with other types of gas cylinders, a variety of models can be selected.

Model: GCM-100, GCM-225, GCM-500, GCM-800, GCM-1000

Standard: ASTM B827, ASTM B845, IEC 60068-2-60, IEC 60068-2-42, MIL-STD-810

Features and Benefits of Mixed Gas Test Chamber

1. Equipped with NAOH solution tank with spraying device to accelerate the dilution speed of gas and ensure the safety of laboratory and operators.

2. Strong seal, concave and convex design, double hard silicone strip and electromagnetic lock to prevent gas leakage and misoperation.

3. All kinds of gas concentrations can be accurately adjusted.

4. Comply with IEC 60068-2-42, IEC 60068-2-60 and other standards of single gas test, can also perform mixed gas test.

Specifications of Mixed Gas Test Chamber

Model	GCM-100	GCM-225	GCM-500
Internal Dimensions (mm)	400500500	500600750	700800900
Overall Dimensions (mm)	101010501620	111011501860	133013502010
Interior Volume (L)	100	225	500
Temperature Range	15 ℃ ～ 80 ℃
Temperature Fluctuation	± 0.5 ℃
Temperature Deviation	± 2.0 ℃
Humidity Range	30% ~ 98% RH
Humidity Deviation	±2.5% RH
SO2 Concentration	100 ~500 ppb± 20 ppb (Adjustable)
H2S Concentration	10 ~100 ppb ± 20 ppb (Adjustable)
NO2 Concentration	200 ppb ± 20 ppb (Adjustable)
Cl2 Concentration	10 ~20 ppb ±5 ppb (Adjustable)
Air Change Rate	3~10times /h
Cooling system	Mechanical compression refrigeration system
Humidifier	External isolation, stainless steel surface evaporation humidifier
Water Supply System	Water purification system, Automatic water supply
Controller	Programmable color LCD touch screen controller Ethernet connection, PC Link
Gas Sensor	H2S/NO2/CL2/SO2 gas sensor
Air Circulation	Centrifugal wind fan
Door Lock	Electromagnetic lock
Gas Exhaust Device	Exhaust Unit
Safety Device	Humidifier Dry-combustion Protection; Over-temperature Protection; Over-current Protection; Water Shortage Protection; Earth leakage Protection
Interior material	SUS304 stainless steel +Glass fiber reinforced plastics
Exterior material	Steel Plate with protective coating

Configuration of Mixed Gas Test Chamber

①Workroom	Interior material of workroom is SUS304 stainless steel & glass fiber reinforced plastics to resist noxious gases corrosion.
②Air circulation system	Air circulates to ensure uniform gas concentration, temperature, humidity, etc. in all areas of the workroom. The gas mixture better contact with the test sample.
③Heating system	The electric heating wire, combined with the temperature sensor, provides the required heat for the test chamber at a heating rate of 3℃/min.
④Control system	Composed of programmable touch screen, it can centrally control and monitor temperature, humidity, gas concentration, air circulation, etc. Display the running status of each parameter in real time.
⑤Cooling system	The compression refrigeration unit realizes the cooling of the workroom through the circulation of the refrigerant, and the cooling rate is 1℃/min.
⑥Exhaust device	At the end of the test or when the gas needs to be replaced, the gas in the chamber is diluted through the NaOH solution tank and then discharged.

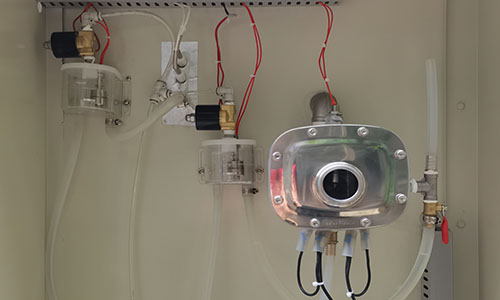

⑦Humidity system	Steam humidifiers, add water to the air in the chamber to achieve the set humidity.
⑧Gas flowmeter	Precise control of noxious gas flow with high accuracy. SO2 Concentration: 100 ~500 ppb± 20 ppb (Adjustable) H2S Concentration: 10 ~100 ppb ± 20 ppb (Adjustable) NO2 Concentration: 200 ppb ± 20 ppb (Adjustable) Cl2 concentration: 10 ~20 ppb ±5 ppb (Adjustable)
⑨Gas sensor	4 gas probes, working independently, for real-time monitoring of the concentration of noxious gases in the chamber.
