Temperature Cycling Chamber

Name: Temperature Cycling Chamber
Brand: Xi'an LIB Environmental Simulation Industry

Temperature cycling chamber repeats between high and low temperatures to simulate the temperature change environment, and the temperature in the chamber changes according to the set rate, range and number of cycles.

Temperature The temperature range is -70℃ -150 ℃, and the low temperature type is -20℃, -40℃, -70℃. The rate of temperature change is 5℃/min or higher.

Model: TR5-100, TR5-225, TR5-500, TR5-800, TR5-1000

Standard: AAMA501, ASTM D4169-16, IEC 61215, IEC 61646, IEC61108, IEC62688, MIL-STD-811D

Temperature Cycling Chamber Features and Benefits

1. Equipped with high-precision temperature sensor and advanced control system, it can accurately control the rate, range and fluctuation of rising and cooling, and the temperature fluctuation can reach ≤±0.5℃.

2. Flexible temperature change rate, such as 5 ° C/min 10 ° C/min, fast temperature change rate can simulate large temperature differences in a short time.

3.Temperature cycling chamber can simulate the complex temperature cycle environment such as high and low temperature alternating, rapid temperature change, wet and heat cycle, and test the performance and reliability of products under different conditions.

4. Advanced cooling, heating and control systems can reduce energy consumption and use energy-saving technology, which can save about 30% to 40% compared to traditional models.

Specifications of Temperature Cycling Chamber

Model	TR5-100	TR5-225	TR5-500	TR5-800	TR5-1000
Internal Dimension (mm)	400500500	500600750	700800900	80010001000	100010001000
Overall Dimension (mm)	90010501620	100011401870	120013402020	130015402120	150015402140
Interior Volume	100L	225L	500L	800L	1000L
Heat load	1000W
Temperature Range	A : -20℃ ~ +150 ℃ B : -40℃ ~ +150 ℃ C: -70℃ ~ +150 ℃
Temperature Fluctuation	± 0.5 ℃
Temperature Deviation	± 2.0 ℃
Cooling Rate	5 ℃ / min
Heating Rate	5 ℃ / min

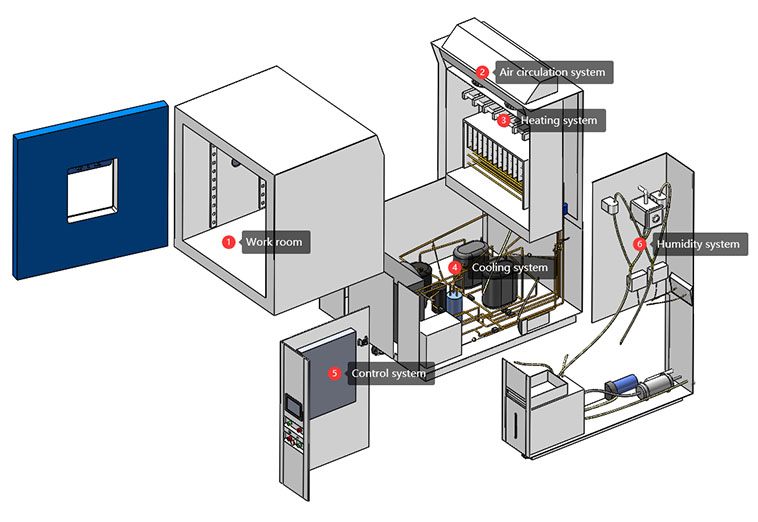

Configuration of Temperature Cycling Chamber

① Workroom	SUS304. Good corrosion resistance, easy to clean, and can withstand temperature changes. Two-layer sample holder, standard load 50kg, height adjustable. High precision temperature probe, PT-100 Class A sensor, accuracy at 0.001 degrees.
② Control system	Set the temperature cycle, such as high and low temperature limits, temperature change rate, holding time, etc., so as to accurately achieve a variety of complex temperature cycle processes to meet different test needs.
③ Air circulation system	Composed of a motor and a fan, the forced air circulation can make the temperature and humidity inside the chamber more uniform, so that the environmental conditions around the test sample are consistent.
④ Heating system	Includes heating wire. Heating elements are located at the back of the workroom to ensure even heat distribution.
⑤ Refrigeration system	Consists of compressor, condenser, evaporator and throttling device. For the case of high low temperature requirements, the use of cascade refrigeration system.
