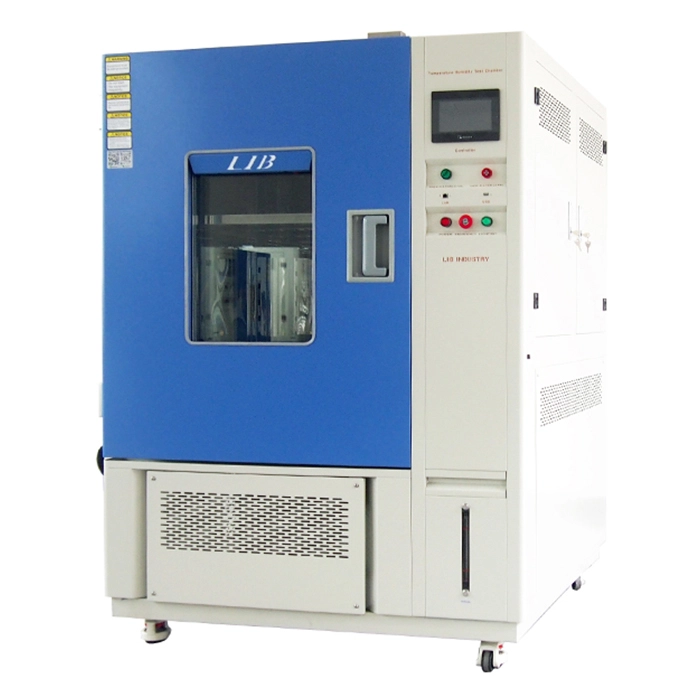

Environmental Stress Chamber

Name: Environmental Stress Chamber
Brand: Xi'an LIB Environmental Simulation Industry

The environmental stress chamber is used to test the performance and reliability of products in different temperature and humidity environments, and help determine the degree of tolerance of products in the actual use environment.

With a temperature control range of -70 ° C to 150 ° C, it accurately simulates extreme cold and extreme heat. Humidity control parameters range from 10% to 98% RH, which fully covers all humidity conditions from dry to high humidity.

Model: TH-100C, TH-225C, TH-500C, TH-800C, TH-1000C

Standard: AAMA501, ASTM D4169-16, IEC 61215, IEC 61646, IEC61108, IEC62688, MIL-STD-812D

Environmental Stress Chamber Features and Benefits

1. Temperature range is generally -70 ° C to 150 ° C, humidity range is 10% to 98%RH, can simulate a variety of extreme environmental conditions, to provide accurate and stable test environment for product testing.

2. The temperature fluctuation can be controlled within ±0.5℃, the humidity fluctuation is within ± 2%RH, the heating rate can be up to 5℃/min, and the cooling rate can be up to 3℃/min, which can meet the requirements of different products and different test standards on the environmental change rate.

3. A variety of functional modules and configuration options can be customized according to different test requirements of users, such as different temperature and humidity curves, different test duration, etc.

4. Equipped with perfect safety protection devices, such as over-temperature, over-voltage, leakage protection, etc., to ensure the safety of operators and equipment.

Specifications of Environmental Stress Chamber

Model	TH-100	TH-225	TH-500	TH-800	TH-1000
Internal Dimension (mm)	400500500	500600750	700800900	80010001000	100010001000
Overall Dimension (mm)	90010501620	100011401870	120013402020	130015402120	150015402140
Interior Volume	100L	225L	500L	800L	1000L
Heat load	1000W
Temperature Range	A : -20℃ ～ +150 ℃ B : -40℃ ～ +150 ℃ C: -70℃ ～ +150 ℃
Temperature Fluctuation	± 0.5 ℃
Temperature Deviation	± 2.0 ℃
Humidity Range	20% ~ 98% RH
Humidity Deviation	± 2.5% RH
Cooling Rate	1 ℃ / min
Heating Rate	3 ℃ / min
Cooling system	Mechanical compression refrigeration system
Refrigerating unit	French TECUMSEH compressor
Heating Element	Nichrome heater
Controller	Programmable color LCD touch screen controller, Ethernet connection
Water supply system	Automatic water supply, Water purification system
Humidifier	External isolation, stainless steel surface evaporation humidifier
Safety Device	Humidifier dry-combustion protection; over-temperature protection; over-current protection; Refrigerant high-pressure protection; Water shortage protection; Earth leakage protection
Exterior Material	Steel Plate with protective coating
Interior Material	SUS304 stainless steel
Thermal Insulation	Polyurethane foam and insulation cotton
Observation Window	Interior lighting, double-layer thermo stability silicone rubber sealing
Standard Configuration	1 Cable hole with plug; 2 shelves

Configuration of Environmental Stress Chamber

① Workroom	SUS 304 Mirror stainless steel, high and low temperature resistance, corrosion resistance, easy to clean, Double punch design sample holder, promote air circulation, height adjustable. Test cable on the left side to energize the test piece and restore the most realistic usage.
② Air circulation system	Composed of fans and air ducts, the fans promote the continuous circulation of air in the chamber, so that the temperature and humidity can be evenly distributed to avoid excessive differences in local temperature and humidity.
③ Heating system	The heating wire is used to raise the temperature in the chamber to the set value by converting electrical energy into heat energy, and the power configuration can be performed according to different heating rate requirements.
④ Cooling system	It is mainly composed of a compressor, a condenser, a throttling device (capillary) and an evaporator to form a refrigeration cycle.
⑤ Humidity system	Increase the humidity of the air inside the chamber so that it reaches the set humidity level.
⑥ Control system	According to the difference between the set value and the feedback value, the controller accurately regulates the operation of heating, cooling, humidification, dehumidification and other devices to achieve accurate control of temperature and humidity.
