IPX6K Test Machine

IPX6K test machine simulates high-pressure water spraying environment and performs waterproof test according to IPX6K standard. During the test, the water pressure can reach about 1000kPa, the water spray flow is about 75L/min, the water spray distance is generally between 2.5 meters and 3 meters, and the test time is at least 3 minutes. Widely used in electronic and electrical products, auto parts, outdoor lamps and other fields.



Model: R6K-1200

Standard: IEC 60529, IPX6K, ISO20653,  IEC 60068-2-68,  IEC 60598, MIL-STD-810G, GJB 150.8-86, ISO 20653, UL 50E, UL 1598, UL 153,  UL1573, UL 60950-1

Features and Benefits of IPX6K Test Machine

1. Accurately simulate the strong water spraying environment that the product may encounter in actual use, up to about 1000kPa water pressure and accurate flow control, nozzle distance from the shell can be accurately controlled in the range of 2.5-3m.



2. With the overall structure, the IPX6K test machine is more stable when running. The inner wall of the workroom is made of SUS304, can withstand the impact of high-pressure water for a long time, and is not easy to rust and deformation.



3. IPX6K test machine has a larger water spray flow, and can carry out a comprehensive water spray test on the product in a short time, improving test efficiency. The spray flow rate can reach 75L/min, which greatly reduces the test time.



4. PID touchable controller, the user can realize the setting of test parameters, the control of the test process, the test cycle can be set, and the record and analysis of test results.



Specifications of IPX6K Test Machine

Model

R6K-1200

Internal Dimensions (mm)

1000*1200*1000   D*W*H

Overall Dimensions (mm)

1150*3550*2100   D*W*H

Interior Volume (L)

1200

Parameter

Testing Platform Diameters

600mm

Testing Platform Speed

5±1 r.p.m

Turntable loads

50kgs

Testing Platform Height

200-400 mm (adjustable)

IPX6K





Internal Diameter of Nozzle

6.3mm

Water Flow Rate

75 L/min +/- 5%

Water pressure

1000 Kpa

Distance from

Water Spraying to Specimens

between 2.5 m and 3 m.



Configuration of IPX6K Test Machine

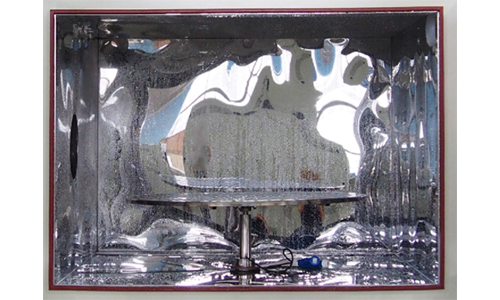

① Workroom

  • High pressure water is supplied from the left side of the workroom, the distance between the nozzle and the shell is 2.5-3m.

  • The height of the turntable with waterproof power supply is adjustable, it can be turned, and it is equipped with a fixed device to prevent the measuring part from being washed away.


② Filter

LIB specially designed a set of automatic inlet filtration system to filter impurities in 0.03mm particles, which ensures the smooth flow of the spray system.IPX3_X4_Test_Chamber4.jpg

③ Water pump

Provides a steady flow of high pressure water.ipx6k_test_machine7.jpg

④ Sensor

Installed in the sprinkler system to monitor the spray pressure.IPX3_X4_Test_Chamber7.jpg
