Thermal Cycling Equipment

Thermal cycling equipment simulates the use of the product at different temperatures(ranging from -70℃ to +150℃), and tests the reliability, stability and durability of the product. Through the heating and cooling system, the product experiences several temperature cycle changes.

The heating and cooling rate can be controlled at 5℃/min.The temperature uniformity in the can reach within ±2℃, ensuring that all treated samples can be thermally-cycled under the same temperature conditions.



Model: TR5-100, TR5-225, TR5-500, TR5-800, TR5-1000

Standard:  AAMA501, ASTM D4169-16, IEC 61215, IEC 61646, IEC61108, IEC62688, MIL-STD-811D


Thermal Cycling Equipment Features and Benefits

1. Accurate and rapid temperature change control can greatly shorten a single cycle, complete multiple cycles in a short time, and improve experiment or production efficiency.



2. Efficient energy utilization and recycling system, reduce energy waste, reduce energy costs. Adjust the power according to the actual demand to further save energy.



3. Advanced temperature sensor and control system, can accurately control the temperature rise and fall, the temperature fluctuation range is controlled within ±0.5℃.



4. Automatic control and monitoring function, can automatically complete the temperature rise and fall, cycle number control and other operations according to the preset program.



Specifications of Thermal Cycling Equipment


Model

TR5-100

TR5-225

TR5-500

TR5-800

TR5-1000

Internal Dimension (mm)

400*500*500

500*600*750

700*800*900

800*1000*1000

1000*1000*1000

Overall Dimension (mm)

900*1050*1620

1000*1140*1870

1200*1340*2020

1300*1540*2120

1500*1540*2140

Interior Volume

100L

225L

500L

800L

1000L

Heat load

1000W



Temperature Range

A : -20℃ ~ +150 ℃

B : -40℃ ~ +150 ℃

C: -70℃ ~ +150 ℃

Temperature Fluctuation

± 0.5 ℃

Temperature Deviation

± 2.0 ℃

Cooling Rate

5 ℃ / min

Heating Rate

5 ℃ / min



Configuration of Thermal Cycling Equipment



① Workroom

  • SUS304 mirror stainless steel, high and low temperature resistance, corrosion resistance, easy to clean.

  • Punch type sample holder, good thermal conductivity.


② Control system



Precisely control the temperature change process, the rate of temperature change. The equipment is monitored and adjusted by feedback.

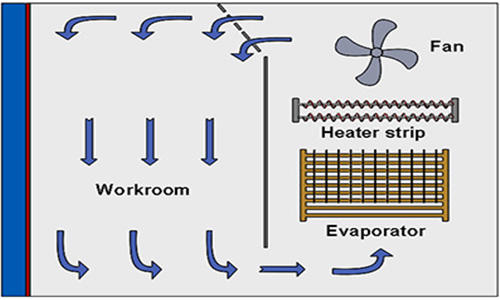

③ Air circulation system


  • The fan drives the circulation of air, so that the heat can be more evenly distributed around the test piece, improving the efficiency of heat transfer.



④ Heating system


  • The electric heating wire generates heat after being energized to provide heat energy for the equipment.

  • It can set and adjust the heating temperature, control the heating time and rate, etc.



⑤ Refrigeration system




The refrigerant circulates between the refrigeration compressor, condenser, expansion valve and evaporator for heat exchange and cooling.
