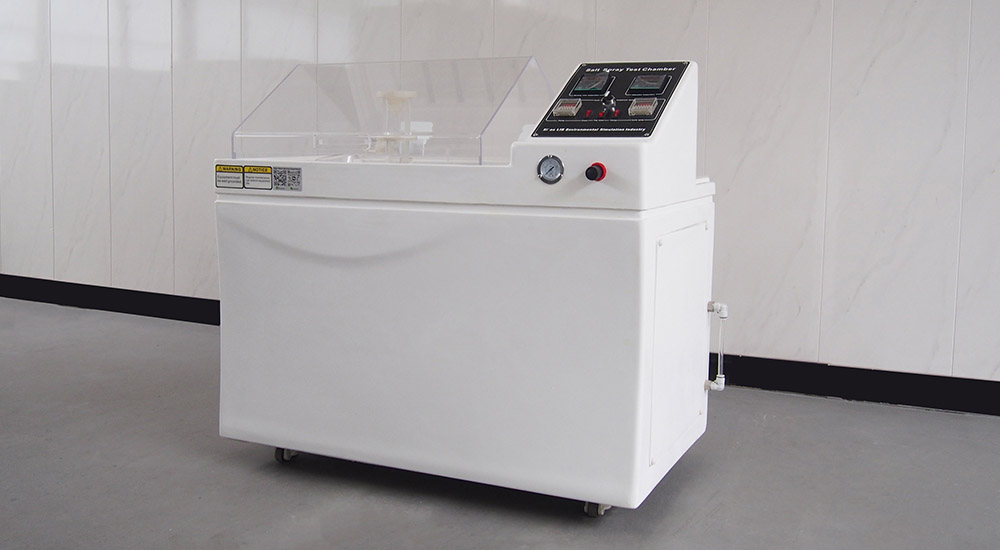

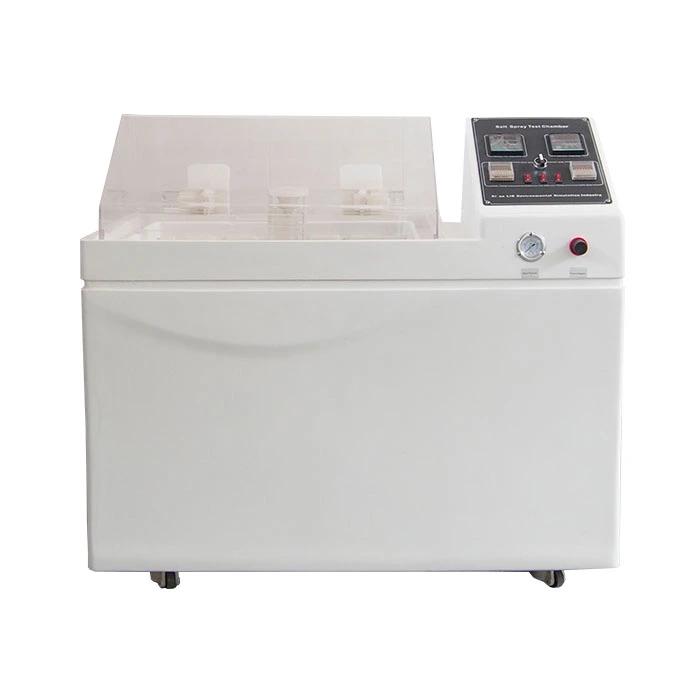

Salt Spray Test Machine

Name: Salt Spray Test Machine
Brand: Xi'an LIB Environmental Simulation Industry

The salt spray test machine simulates the ocean or other saline environments. A 5% concentration of salt solution is atomized to spray on the test sample to test the corrosion resistance of the material (such as metal, coating, etc.).

The amount of salt spray on the surface is 1-2ml /80cm²·h, and the temperature is adjustable from ambient to 60℃. Relative humidity greater than 95% helps salt spray condense on the sample surface, accelerating corrosion.

Model: S-150,S-250, S-750, S-010, S-016, S-020

Standard: ASTM B117, ISO 9227, ASTM G85, D17 2028, SAE J2334, ISO4611, ISO7253, BS3900-F12, IEC 60068-2-11, DIN 50021, ASTM G85-02e1 Annex A1,BS 7479, ASTM B368

Salt Spray Test Machine Features and Benefits

1. By controlling the concentration, temperature, humidity and other conditions of salt spray, the test environment is close to the Marine climate, industrial salt spray environment and other salty corrosive environment that may be encountered in actual use.

2. Automatic control of spray process, including spray start and stop time, spray volume and other parameters. Automatically record test time, temperature, humidity and other data.

3. The test space is diverse, and the sample rack is diverse, from small electronic components to the ability to accommodate large mechanical parts to meet the needs of a variety of sample sizes.

4. Widely used in product quality control. Salt spray testing machine to test whether the product meets the expected corrosion resistance standards to ensure the consistency of product quality.

Specifications of Salt Spray Test Machine

Model	S-150	S-250	S-750	S-010
Internal dimensions (mm)	590470400	1000640500	1100750500	10001300600
Overall dimensions (mm)	14607601140	18509601350	195010301350	2000×1300×1600
Interior Volume (L)	110	320	410	780
Temperature Range	Ambient ～ +60 ℃
Temperature Fluctuation	± 0.5 ℃
Temperature Deviation	± 2.0 ℃
Humidity Range	95% ~ 98% RH
Salt Fog Deposition	1～2ml / 80cm2 · h
Spray Type	Continuous / Periodic
Salt Fog Collected	Fog collector and fog measure cylinder
Air Preheating	Saturated air barrel
Spraying System	Atomizer tower and Spray nozzles
Controller	PID controller
Safety Device	Humidifier Dry-combustion Protection; Over-temperature Protection; Over-current Protection; Water Shortage Protection; Earth leakage Protection
Material	Glass fiber reinforced plastics
Standard Configuration	6 round bars and 5 V-shaped grooves

Configuration of Salt Spray Test Machine

1. Chamber body	A whole molded, no secondary welding, no leakage phenomenon, upgrade FRP material. Seal the lid and the enclosure with water to prevent the overflow of salt spray.
2. Workroom	There are V-shaped and round rods for placing the sample, the sample placement Angle can be adjusted. The funnel cup collects the salt spray and detects the settlement through the external measuring cylinder of the chamber.
3. Spray tower	The tower spray device with no crystallization nozzle can make the salt spray evenly distributed and the settling amount can be adjusted freely.
4. Heating system	Fully independent system, with nickel-chromium electric heating heater, can be achieved on the workroom.
5. Control system	Equipped with high precision PID temperature controller, it can realize the precise control and setting of temperature, spray time and other parameters.
6. Salt solution tank	Store salt solution for spray to provide corrosive medium for salt spray test.
7. Saturated barrel	The air entering the spray system is heated and humidified to reach saturation humidity to ensure that the spray is more uniform and stable, close to the salt spray state in the natural environment.
8. Air source	Provide pressure for the spray, and the air source pressure is stable.
