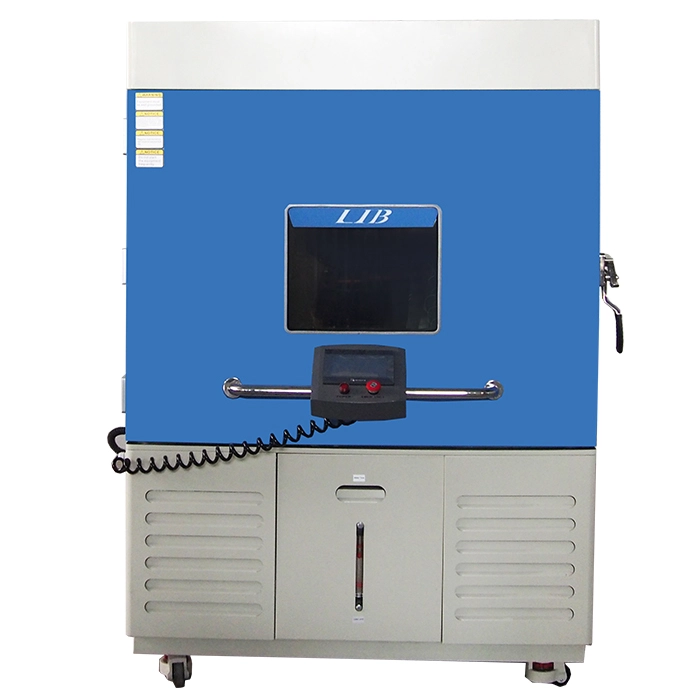

Accelerated Weather Tester(Xenon)

Name: Accelerated Weather Tester(Xenon)
Brand: Xi'an LIB Environmental Simulation Industry

Accelerated weather tester(xenon) can perform accelerated aging tests，highly faster than natural Natural weathering test, like a time accelerator. Accelerated weather tester uses xenon lamp as the light source, highly restored sunlight, combined with controlled temperature and humidity and simulated rain spray, to provide a precise, controlled and realistic environment for weathering testing of materials or products.

Model: XL-S-500,XL-S-750

Standard: IEC 60068-2-5, IEC 60068-2-27,ASTM G26,ISO 105, ISO 4892-2, ASTM G155, ASTM G151, ASTM G155,ISO 105-B02 (EN) (DIN), ISO 105-B04 (EN) (DIN).

Accelerated Weather Tester(Xenon) Features and Benefits

1. Equipped with high-pressure xenon lamps, accurately reproduce the full spectrum of natural sunlight, including ultraviolet wavelength range of about 300-400nm.

2. In addition to light, the temperature is in a wide range of ambient to 100 ° C, the humidity is 50%-98% RH, and the spray volume and spray interval can be adjusted.

3. By enhancing the xenon lamp light intensity, 35~150w/㎡, greatly accelerate the aging rate of materials, greatly shorten the test cycle.

4. Flat shelf holder and rotating holders are optional, and the workroom size and test chamber performance can be customized according to your needs.

Specifications of Accelerated Weather Tester(Xenon)

Model	XL-S-750
Internal Dimension (mm)	950950850 mm
Overall Dimension (mm)	140014001950 mm
Specimen Holder Size(mm)	95*200
Specimen Capacity	42pcs
Chamber Type	Rotating Holder
Irradiation Source	1 piece of 4500w water-cooled xenon arc lamp
Irradiance Range	35~150 W/㎡
Bandwidth Measurement	300nm~400nm (340nm or 420nm)
Chamber Temperature Range	Ambient ～ 100 ℃ ±2℃
Black Panel Temperature	BPT 35 ～ 85 ℃ ±2℃
Humidity Range	50% ~ 98% RH
Humidity Deviation	± 5% RH
Water Spray Cycle	1~9999H59M (Adjustable)
Controller	Programmable color LCD touch screen controller
Water supply system	Automatic water supply, Water purification system
Radiometer	UV Radiometer, Tolerance: ±5%
Cooling System	Mechanical compression refrigeration system

Configuration of Accelerated Weather Tester(Xenon)


① Workroom	The rotating sample holder on the upper, middle and lower layers can make the sample receive light evenly and the speed can be adjusted. Xenon lamps are equipped with a variety of filters, such as daylight Q, daylight B/B, Window Q, window B/B filters, to more accurately study the effects of different wavelengths of light on the material.
② Air circulation system	Make the air keep circulating in the workroom, so that the temperature and humidity, xenon lamp light and other environmental factors distribution evenly.
③ Heating system	High power heating wire, with refrigeration system, temperature from ambient to 100℃ controllable.
④ Refrigeration system	The refrigerant completes a refrigeration cycle through evaporation,compression,condensation throttling.
⑤ Humidity system	Closed humidifier, direct evaporation humidification workroom.
⑥ Water system	Through the linkage with the light, temperature and humidity control system, the natural rainfall environment is accurately simulated, so that the test sample experiences regular dry and wet alternations.
⑦ Control system	Control light intensity, temperature and humidity, alternating cycle of light and dark, spray time, etc., support remote monitoring and operation, to achieve convenient management.
