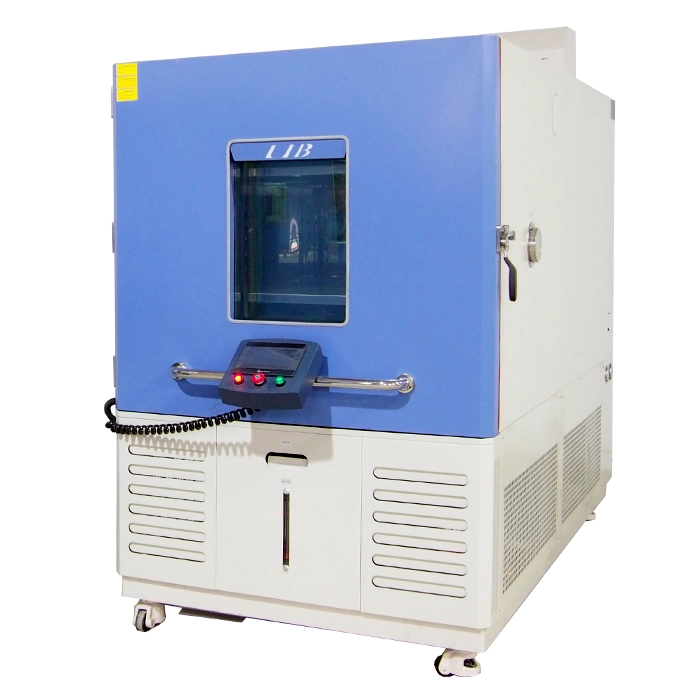

Hot Cold Humidity Chamber

LIB hot cold humidity chamber can creates stable hot and cold environment with variable humidity 20%~98%RH to test products’ performance. -20℃,-40℃,-70℃ and etc, mutiple options for chosen.The highest temperature is up to +150℃.

The hot cold humidity chamber, performance, configuration can be customized, 3 years long warranty, welcome to get a quote!



Model: TH-100A, TH-225A, TH-500A, TH-800A, TH-1000A

Hot Cold Humidity Chamber Features and Benefits

1. Wide temperature range:

2. Temperature and humidity stability:

3. Tight sealing of the test chamber:

-70℃ ~ +150, the temperature range can be customized.

The temperature fluctuation is within ± 0.5 ° C, and the humidity deviation is less than 2.5% RH.

Convex design of hot cold humidity chamber door, double silicone sealing strip.

4. Intelligent controller:

5. The use of high-quality materials:

6. Air circulation system:

Programmable test program, data can be downloaded.

4MM A3 steel chamber body, SUS304 inner wall of the workroom

Ensure that the air circulation and temperature and humidity in the working room are uniform.


Hot Cold Humidity Chamber Specifications

Model

TH-100

TH-225

TH-500

TH-1000

Internal Dimension (mm)

400*500*500

500*600*750

700*800*900

1000*1000*1000

Overall Dimension (mm)

900*1050*1620

1000*1140*1870

1200*1340*2020

1500*1540*2140

Interior Volume

100L

225L

500L

1000L

Heat load

1000W

Temperature Range

A : -20℃ ~ +150 ℃

B : -40℃ ~ +150 ℃

C: -70℃ ~ +150 ℃

Temperature Fluctuation

± 0.5 ℃

Temperature Deviation

± 2.0 ℃

Humidity Range

20% ~ 98% RH

Humidity Deviation

± 2.5% RH

Cooling Rate

1 ℃ / min

Heating Rate

3 ℃ / min



Details of Hot Cold Humidity Chamber




  • Workroom

  • Temperature and humidity sensor

  • PLC controller

  • Separation of water and electricity


Application and Use of Hot Cold Humidity Chamber

The test chamber can create high temperature, low temperature, wet heat or constant conditions to test the performance of the product's high temperature, low temperature and wet cycle resistance. Including electronic products, automotive parts and vehicle testing, aerospace materials and equipment, pharmaceutical stability research and materials science research.


If you are interested in LIB's hot cold humidity chamber , please leave your information below, and our team will contact you soon to provide you with professional solutions and quotations.
