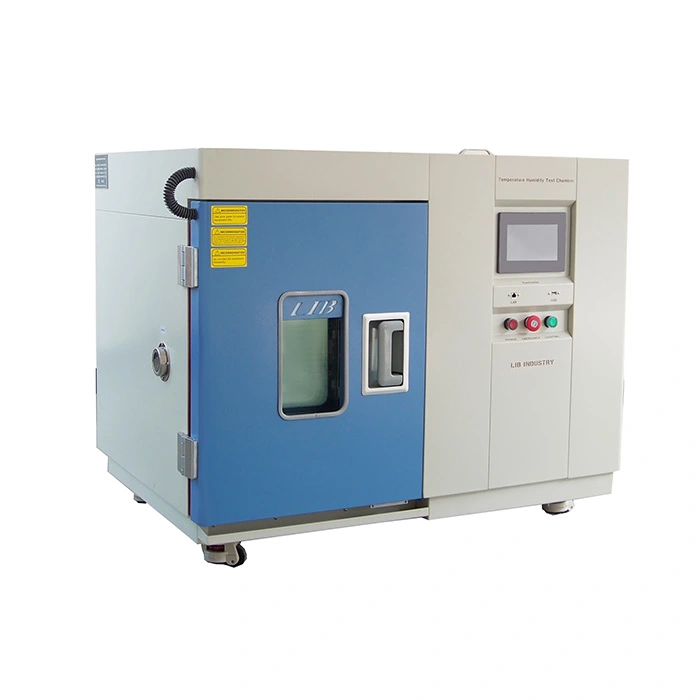

Small Environmental Test Equipment

Name: Small Environmental Test Equipment
Brand: Xi'an LIB Environmental Simulation Industry

Small environmental test equipment owns precise control and measurement of temperature and humidity. The temperature ranges from -20 ° C, -40 ° C, -70 ° C to +150 ° C, and the humidity ranges from 20% to 98%RH. Precise temperature and humidity control system is equipped in the controlled environmental chamber.

Suitable for simulating various temperature and humidity environments in the laboratory, testing small samples. Compact design, comprehensive features, and ample stock.

Model: TH-50A ,TH-50B, TH-50C

Standard: AAMA501, ASTM D4169-16, IEC 61215, IEC 61646, IEC61108, IEC62688, MIL-STD-811D

Features and Benefits of Small Environmental Test Equipment

1. Small size, will not take up too much space, easy to place in the laboratory of the experimental bench, small workroom.

2. The precise setting and maintenance of a specific temperature range can be accurate to ±0.1 ° C, and the humidity control accuracy can reach about ±2.5%RH, all the parameter can be set accurately in controlled environmental chamber.

3. Able to simulate a variety of temperature and humidity environment changes, including constant temperature and humidity environment, cyclic change of temperature and humidity environment.

4. The price is also more affordable, and because the equipment is small in size and low in power, the energy consumption during operation is also relatively low, which can save energy costs.

Specifications of Small Environmental Test Equipment

Model	TH-50	TH-80
Internal Dimension (mm)	320350450	400400500
Overall Dimension (mm)	8201160950	90012101000
Interior Volume	50L	80L
Heat load	1000W
Temperature Range	A : -20℃ ～ +150 ℃ B : -40℃ ～ +150 ℃ C: -70℃ ～ +150 ℃
Temperature Fluctuation	± 0.5 ℃
Temperature Deviation	± 2.0 ℃
Humidity Range	20% ~ 98% RH
Humidity Deviation	± 2.5% RH
Cooling Rate	1 ℃ / min
Heating Rate	3 ℃ / min
Cooling system	Mechanical compression refrigeration system
Controller	Programmable color LCD touch screen controller Ethernet connection
Safety Device	Humidifier Dry-combustion protection; Over-temperature Protection; Over-current Protection; Refrigerant High-pressure protection; Water Shortage Protection; Earth leakage Protection
Exterior Material	Steel Plate with protective coating
Interior Material	SUS304 stainless steel
Thermal Insulation	Polyurethane foam and insulation cotton
Observation Window	Interior lighting, double-layer thermo stability silicone rubber sealing
Standard Configuration	1 Cable hole (Φ 50,) with plug; 2 shelves
Weight	190kgs	220kgs

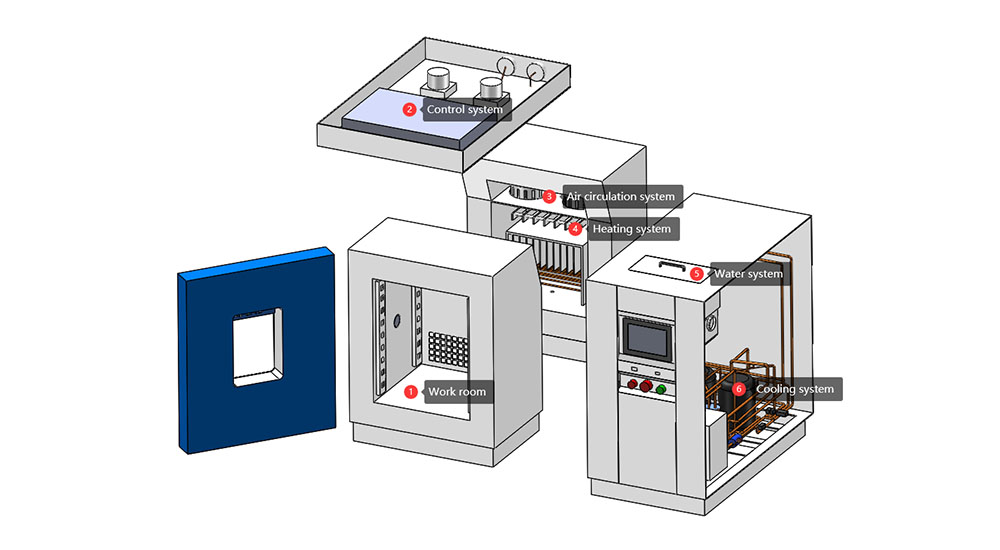

Configuration of Small Environmental Test Equipment

① Workroom	External material 4MM A3 steel plate, durable, corrosion resistant. The inner wall is made of SUS 304 mirror stainless steel, resistant to corrosion, high and low temperature, easy to clean. Standard double punch sample holder, bearing capacity 50KG. High precision temperature and humidity probe.
② Control system	Control the work of heating, cooling, humidification and other components. You can set temperature and humidity parameters and test time through the operation panel.
③ Air circulation system	A fan is installed at the back of the workroom to circulate air and ensure an even distribution of temperature and humidity.
④ Heating system	High power electric heating wire, high heating efficiency.
⑤ Water system	Including humidifier, water tank, etc. Humidifier can atomize water to increase humidity; The tank stores water and is equipped with a high-low water float.
⑥ Cooling system	Compressor refrigeration system. Through the circulation of refrigerant, heat is absorbed and temperature is reduced.
