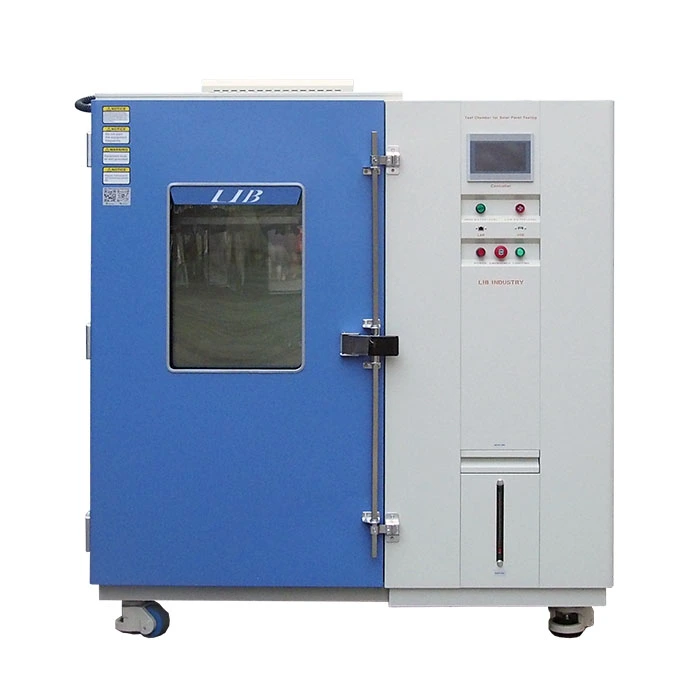

PV Environmental Test Chamber

Name: PV Environmental Test Chamber
Brand: Xi'an LIB Environmental Simulation Industry

PV environmental test chamber is a photovoltaic environmental test chamber. The pv environmental test chamber can simulate the environmental conditions including temperature with range of -60℃ ~ +100 ℃, humidity with range of 20% ~ 98% RH. Meantime, it can also be customized lighting, rainfall, dust and so on.

Through these simulated environmental tests determines the resistance of photovoltaic products in the actual use environment.

Model: DHPV-04,PV-04

Standard: ,IEC 62804,IEC 61215,IEC 61646,IEC 62108,UL 1703,JIS C-8990,C-8991,C-8917,C-8938

PV Environmental Test Chamber Features and Benefits

1. PV environmental test chamber can accurately simulate various temperature and humidity conditions, and the temperature deviation can be controlled at ±0.5℃. Humidity deviation is also controlled within a small range ( ±2.5%RH).

2. PV environmental test chamber has good sealing performance to ensure the stability of environmental conditions during the test. The high quality rubber sealing ring can effectively prevent the outside air and water from entering the inside of the test chamber, affecting the test results.

3. Test Spaces of different sizes and shapes can be customized to meet the needs of photovoltaic module testing of various specifications. Whether it is a small photovoltaic cell sheet or a large photovoltaic module array.

4. The photovoltaic modules are tested in batches to screen out products with stable performance and reliable quality, reduce the defective rate, and improve production efficiency and economic benefits.

Specifications of PV Environmental Test Chamber

Model		PV-04
Internal Dimension (mm)		13007001350
Overall Dimension (mm)		190011001750
Interior Volume		1220L
Parameter	Temperature Range	-60℃ ～ +100 ℃
	Temperature Fluctuation	± 0.5 ℃
	Temperature Deviation	± 2.0 ℃
	Humidity Range	20% ~ 98% RH
	Humidity Deviation	± 2.5% RH
	Temperature Change Rate	1 ~ 3.4℃ / Min
	Panel Size	1M*2M
	Panel Capacity	4 / 6 / 8 / 10 / 12 Pieces
	Controller	Programmable color LCD touch screen controller
		Ethernet connection, PC Link, USB
	Humidity	Water supply system	Automatic water supply
		Water supply system	Water purification system
		Humidifier	External isolation, stainless steel surface evaporation humidifier
		Dehumidification	Evaporator
	Sensor	Temperature Sensor	PTR Platinum Resistance PT100Ω/MV A-class, accuracy 0.001℃
		Humidity Sensor	Dry and wet bulb sensor
	Build-in Water Tank(mm)	270300450
	View Window Size(mm)	330*370
	Air Circulation	Centrifugal wind fan
	Safety Device	Humidifier Dry-combustion Protection; Over-temperature Protection; Over-current Protection; Refrigerant High-pressure Protection; Water Shortage Protection; Earth leakage Protection

Configuration of PV Environmental Test Chamber

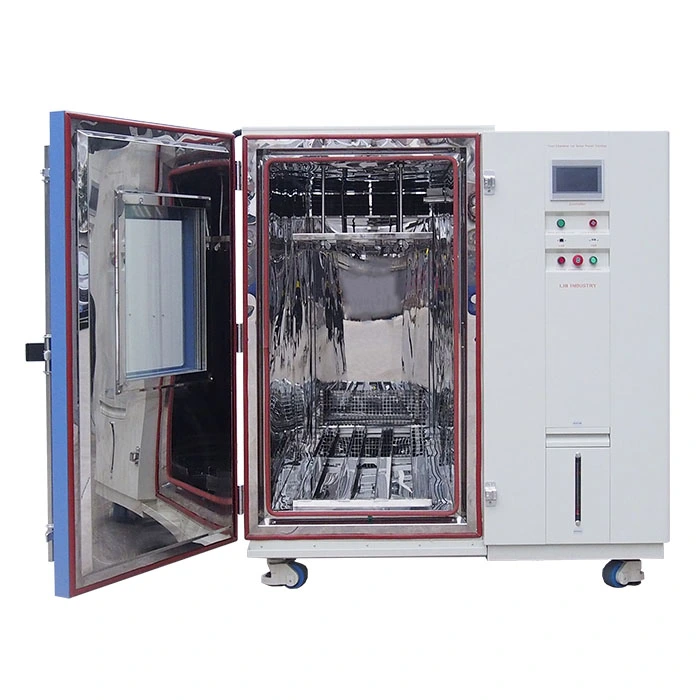

1. Workroom	The chamber shell is made of 4MM A3 steel plate material with good corrosion resistance and strength to ensure the stability of the internal environment of the test chamber. The workroom is made of SUS 304 mirror stainless steel, which is resistant to high and low temperature, humidity and easy to clean. Equipped with a sample holder for fixing the photovoltaic module, while the photovoltaic module placement angle can be adjusted. Equipped with high precision temperature and humidity sensor and lighting.
2. Air circulation system	Composed of ventilation duct and fan: ventilation duct connected to the internal and external environment of the test chamber, the fan is installed in the ventilation duct to drive the flow of air and ensure the uniform distribution of environmental factors.
3. Heating system	Electric heating wire. It is distributed on the inner wall of the test chamber to increase the temperature in the test chamber.
4. Cooling system	Adopts cascade mechanical refrigeration, high refrigeration efficiency, by compressor, condenser, evaporator, throttling elements.
5. Control system	Programmable logic controller (PLC). Testers can set test parameters through the operation interface, such as temperature, humidity, light intensity, test time, etc., real-time monitoring of various data during the test process, and analysis and processing.
6. Humidity system:	Steam humidification. By heating the water to produce steam, the steam is introduced into the test chamber to increase the humidity.
