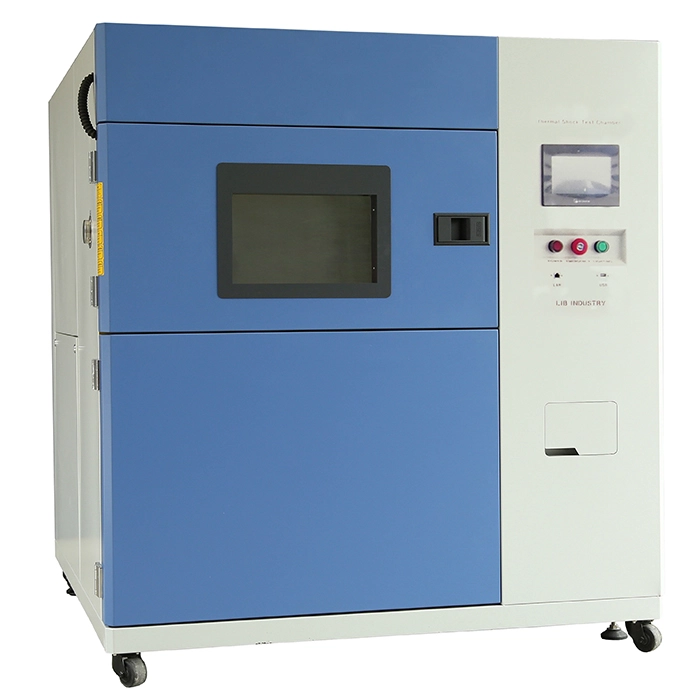

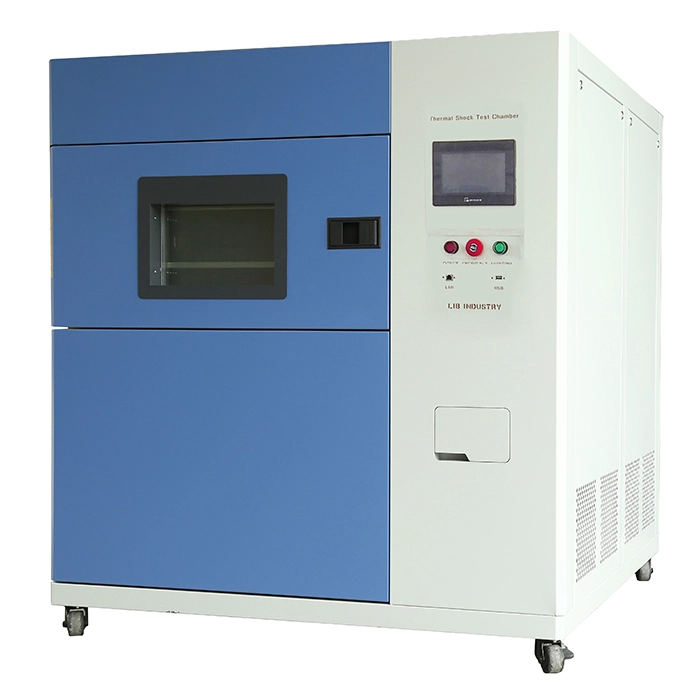

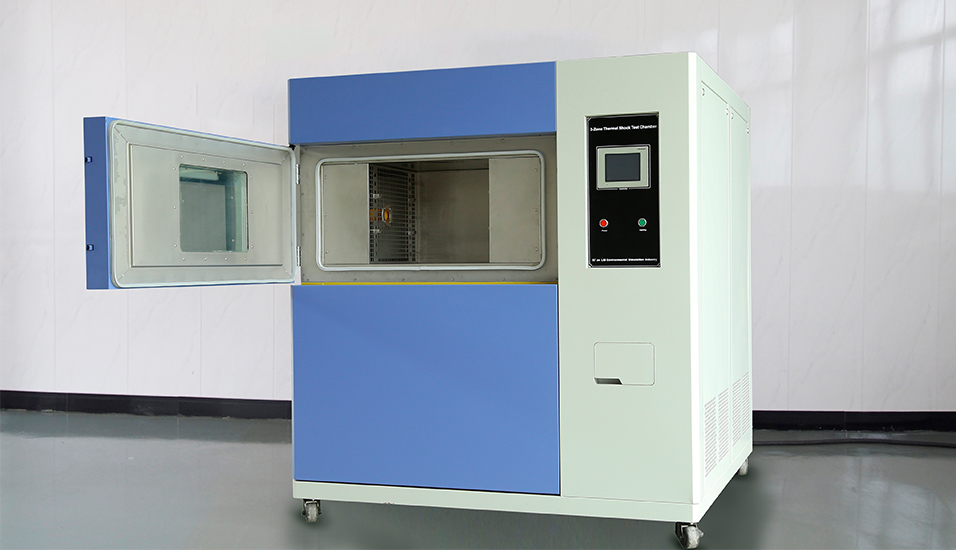

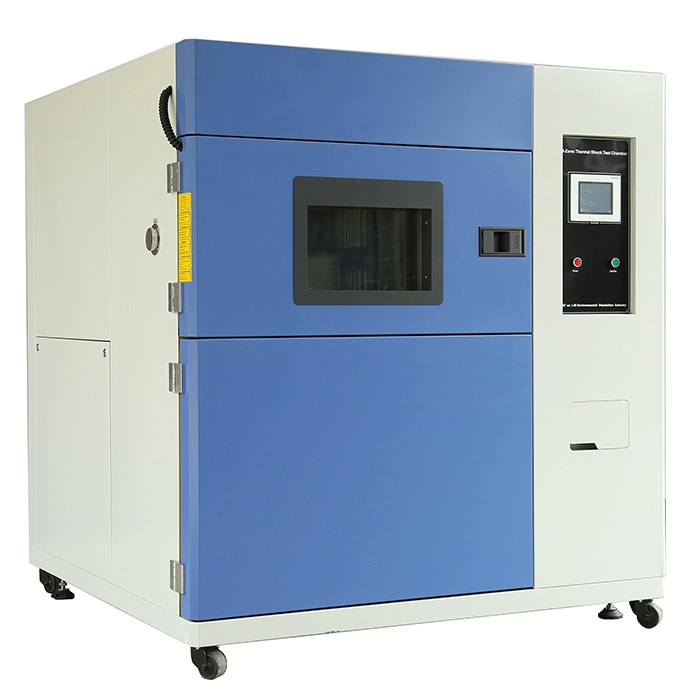

High and Low Temperature Impact Test Chamber

Name: High and Low Temperature Impact Test Chamber
Brand: Xi'an LIB Environmental Simulation Industry

The high and low temperature impact test chamber(3 zones) can achieve rapid temperature change(-70℃ to +220℃) in a short time so as to evaluate the reliability and stability of the product.

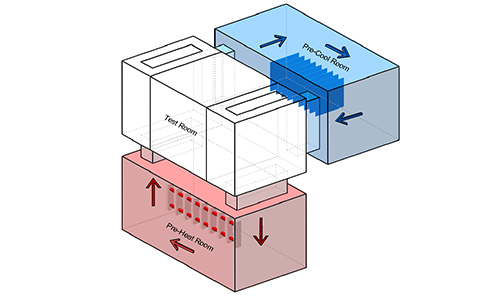

One workroom is for test room making external size smaller, pre-heated and pre-cooled zones are to achieve faster test temperature. You can also click to learn thermal shock chamber(2 zones).

Model: 3TS-100, 3TS-210, 3TS-300, 3TS-500

Standard: AAMA501, ASTM D4169-16, IEC 61215, IEC 61646, IEC61108, IEC62688, MIL-STD-813D

High and Low Temperature Impact Test Chamber Features and Benefits

1. Wide temperature range can meet the testing requirements of various products for high and low temperature limit conditions.

2. The high and low temperature impact test chamber is made of high quality sealing materials and insulation materials, preventing heat loss and interference.

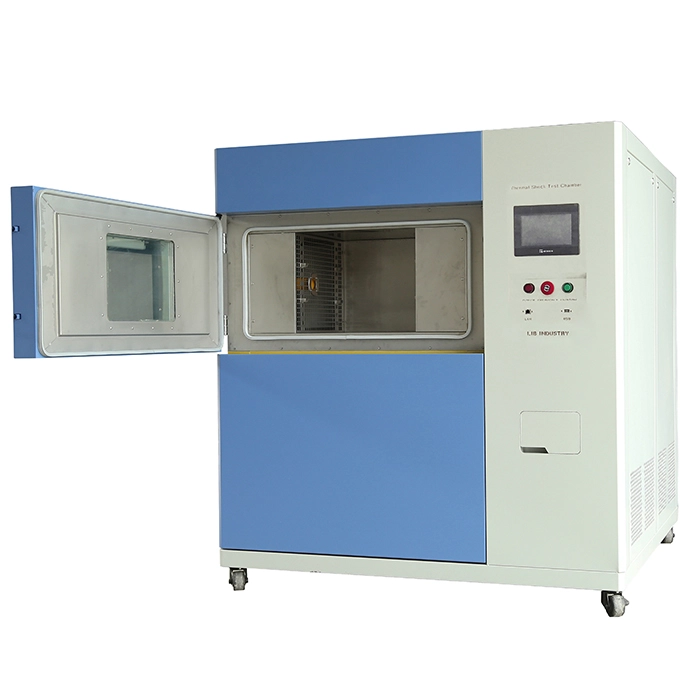

3. The specimen does not need to be moved. It is very easy to place the test specimens and suitable for large objects.

4. In addition to hot and cold air impact, the high and low temperature impact test chamber can also be customized air to liquid impact, liquid to liquid impact, etc.

Specifications of High and Low Temperature Impact Test Chamber

Model		3TS-100	3TS-210	3TS-300	3TS-500
Internal Dimensions (mm)		500500400	700600500	700780550	900800700
Overall Dimension (mm)		115019502100	135021002200	135022502300	250022502150
Interior Volume (mm)		100L	210L	300L	500L
Loading Capacity		10kg	15kg	25kg	35kg
Pre-heat Room	Upper limit Temperature	+220℃
	Heating Time	Ambient ~ + 200℃, within 30 minutes
Pre-cool Room	Lower limit Temperature	-75℃
	Cooling time	Ambient ~ -70℃, within 30 minutes
Test Room	High Temperature Exposure Range	Ambient +20 ~ +200°C
	Low temperature Exposure Range	–65 ~ -5°C
Temperature Fluctuation		≤±0.5℃
Temperature Deviation		≤±3 ℃
Temperature Recovery Time		Within 5 minutes
Cooling System		Mechanical compression refrigeration system
Controller		Programmable color LCD touch screen controller, Ethernet connection
Safety Device		Over-temperature protection, Over-current protection; Refrigerant high-pressure protection; Earth leakage protection
Exterior Material		Steel Plate with protective coating
Interior Material		SUS304 stainless steel
Observation Window		Interior lighting, double-layer thermo stability silicone rubber sealing
Standard Configuration		2 shelves

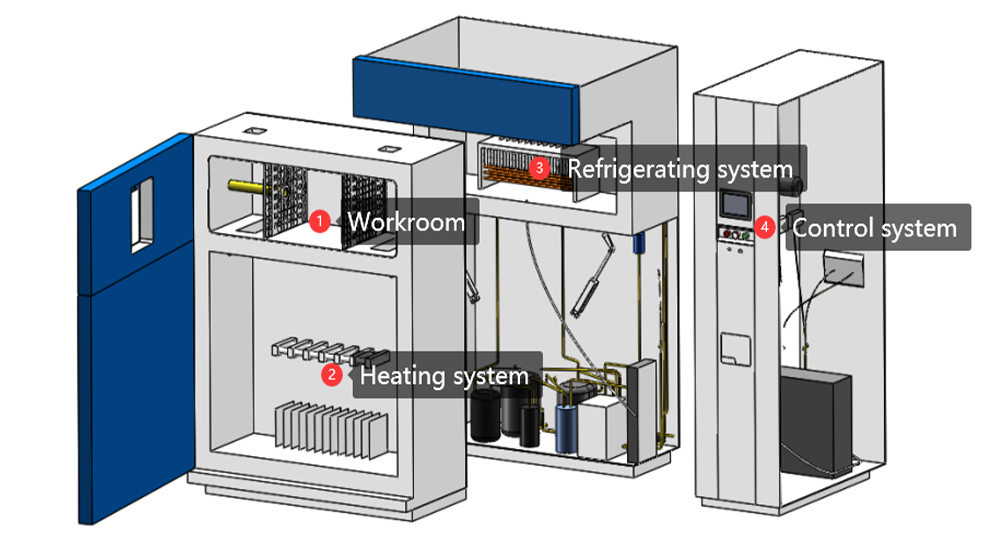

Configuration of High and Low Temperature Impact Test Chamber

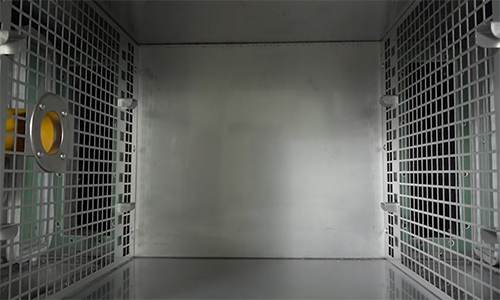

1. Workroom	SUS 304 stainless steel, high and low temperature resistance, standard with two layers of sample holder. The high and low temperature impact test chamber circulates cold and hot air through the pneumatic damper on the left and right sides of workroom.

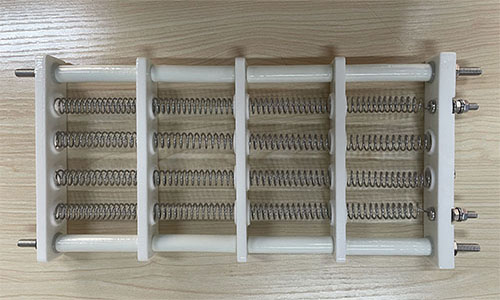

2. Heating system	Located directly below the workroom, equipped with high-power heating wires, the heated air is circulated to the workroom through the top of the preheat room, with a maximum temperature of +220 ° C.

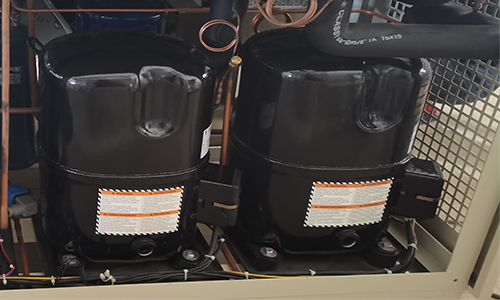

3. Refrigerating system	Located directly behind the workroom, the mechanical refrigeration cycle circulates cold air through the rear side damper of the workroom to the workroom, with the lowest temperature up to -70℃.

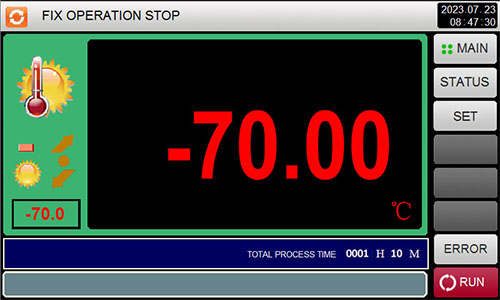

4. Control system	High precision PID algorithm and automation program to achieve accurate temperature control and fast switching of high temperature, low temperature and test chambers.
