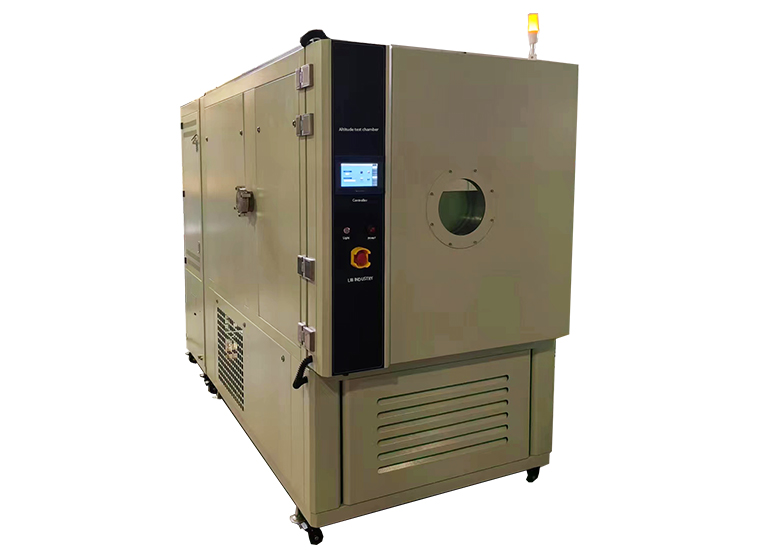

Temperature and Low Air Pressure Test Chamber

Name: Temperature and Low Air Pressure Test Chamber
Brand: Xi'an LIB Environmental Simulation Industry

LIB temperature and low air pressure test chamber can reproduce high altitude low pressure environment, with different temperature and low pressure environments.Besides that,the low pressure test chamber can customize the size, change the performance, and add features such as vibration according to your needs.

Temperature range: -20℃,-40℃,-60℃,-120℃ ～ +150 ℃

Pressure range: atmospheric pressure 101.kPa ~ 0.5kPa

Model: A-1000

Standard: IEC 60068, IEC 60749, MIL-STD-202F

Temperature and Low Air Pressure Test Chamber Features and Benefits

1. The test chamber combines a wide temperature and humidity range, low pressure range, can complete a variety of complex low pressure tests.

2. Complete low pressure test can be performed including: preparation; low pressure storage test; low pressure working test; rapid decompression test; explosion decompression test.

3. The pressure control accuracy can reach ±2Kpa, the low pressure vacuum environment is stable, and the pumping low pressure time is controlled within 30 minutes.

4. Double-layer or multi-layer structure, A3 shell is durable, the workroom uses SUS304, which has good corrosion resistance and thermal insulation performance.

Temperature and Low Air Pressure Test Chamber Specifications

Model	A-1000
Internal dimensions	D 1500 W 1000 H 970 mm
External dimensions	D 2050 W 1300 H 2200 mm
Temperature range	-20℃ ～ +150 ℃ -40℃ ～ +150 ℃ -60℃ ～ +150 ℃ -120℃ ～ +150 ℃
Humidity range	20% ~ 95% (more than 50Kpa can be controlled)
Temperature fluctuation	≤ ±0.5℃
Temperature deviation	≤ ±2.0℃
Temperature uniformity	≤ 2.0℃ (under normal pressure and no load)
Heating rate	3℃/min
Cooling speed	2℃/min
Pressure range	Atmospheric pressure to 0.5kPa
Pressure deviation	± 2Kpa
Depressurization time	Atmospheric pressure to 0.5k ≤30min
Pressure enclosure	Manganese steel, surface spray treatment
Other outer wall materials	Double-sided galvanized steel plate, surface spray treatment
Inner wall material	SUS304 stainless steel plate
Vacuum system	Vacuum pump, air pumping regulating valve, inflation regulating valve

Details of Temperature and Low Air Pressure Test Chamber



Workroom SUS304 material, robust and durable.	Test cable hole easy to power the test part, reinforced design to enhance the sealing.

Programmable controller To achieve temperature and humidity, air pressure, air pressure change rate adjustment. Data available for download.	Vacuum pump Exhaust air to create a low pressure environment, dynamic adjustment, offset pressure fluctuations, maintain stable pressure.

Sample holder With double punch type sample stand, SUS304 material, standard bearing capacity 50KG.	Electric control cabinet: Water(humidity system) and electricity separation.

Application of Temperature and Low Air Pressure Test Chamber

In the product development and production stage, temperature and low air pressure test chamber can find out in advance the problems that may occur in the low temperature and low pressure environment, such as material property changes, electronic component failures, etc., so as to improve product design and process, improve product quality and reliability.

If you have similar request and need more information,please contact us for the solutions and quote.
