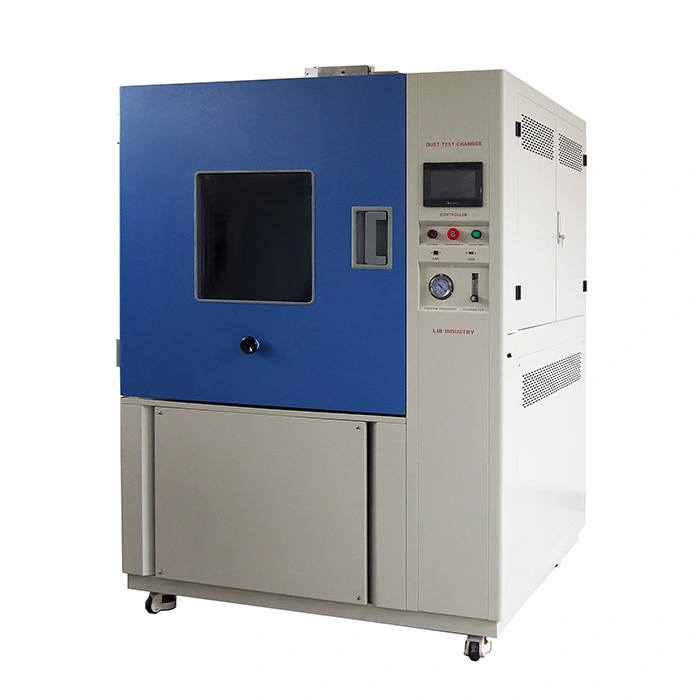

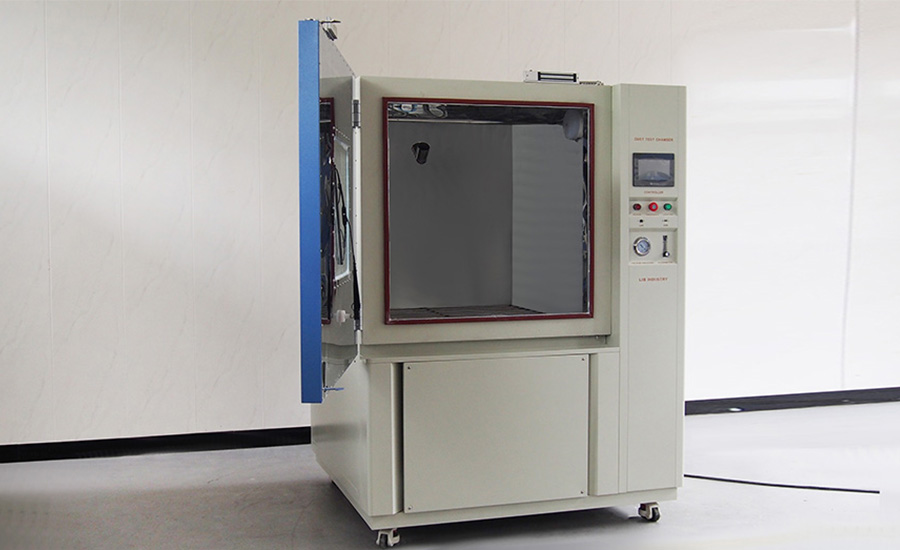

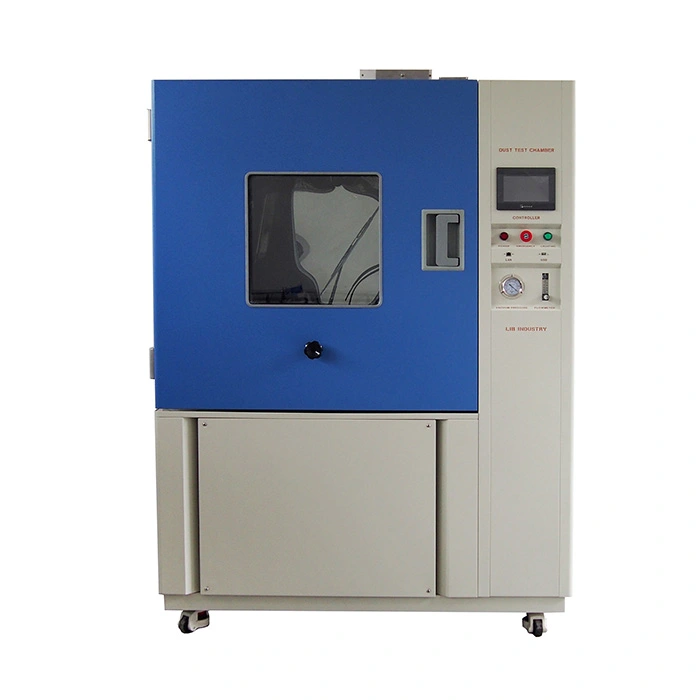

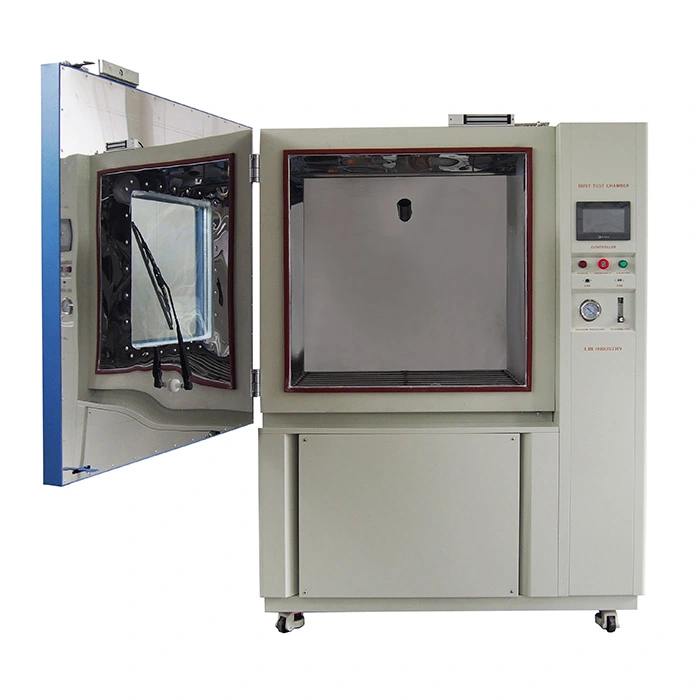

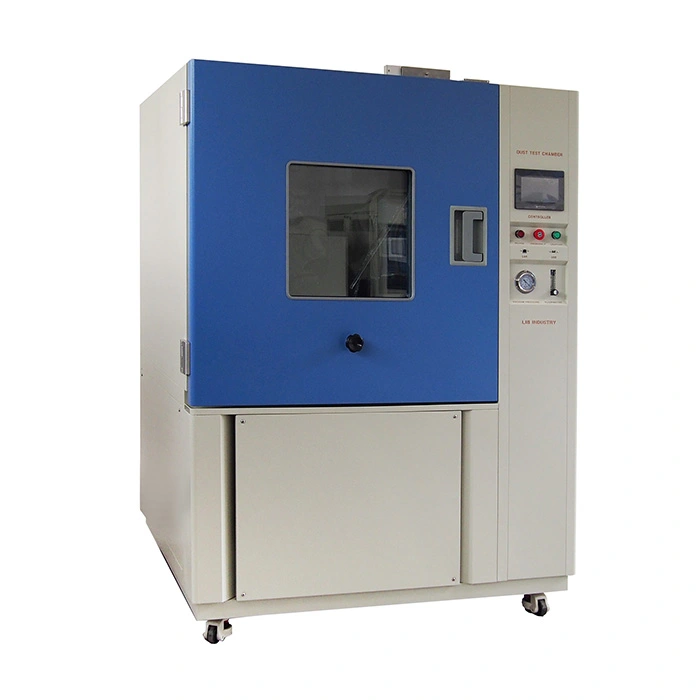

IP6X Dustproof Ingress Test Machine

Name: IP6X Dustproof Ingress Test Machine
Brand: Xi'an LIB Environmental Simulation Industry

The IP6X dust-proof entry testing machine creates a high dust concentration environment, simulating the actual usage environment of the product. By observing whether dust enters the product after a certain testing period and the extent of dust entry, the dust-proof performance of the product is evaluated. "6" indicates the highest level of dust protection, meaning complete prevention of dust intrusion.

Model: DI-800, DI-1000, DI-1500, DI-2000

Standard: IEC 60529, IP5X, IP6X, ISO20653, IEC 60068-2-68, IEC 60598, MIL-STD-810G

Features and Benefits of IP6X Dustproof Ingress Test Machine

1. IP6X is the highest level of dust protection standard, representing complete prevention of dust from entering the equipment. In full compliance with IEC 60529 IP6X standard.Adjustable range of test time: 1 min to 9999 min.

2. The interior is equipped with high-precision sensors and a closed-loop control system, which can precisely monitor and adjust the wind speed, pressure difference and dust concentration inside the workroom.

3. The large-volume workroom and high-efficiency circulation system can accommodate various test samples, support batch testing, and improve experimental efficiency.

4. Key components such as fans, sensors, and sand and dust distributors all adopt modular design, facilitating rapid replacement and maintenance.Multiple safety protection measures at the same time.

Specifications of IP6X Dustproof Ingress Test Machine

Model	DI-800	DI-1000	DI-1500	DI-2000
Internal Dimension (mm)	80010001000	100010001000	100015001000	100020001000
Overall Dimension (mm)	104014501960	133014501960	133019501990	133024501990
Useful Volume (L)	800	1000	1500	2000
Temperature Range	Ambient ~ +50℃
Humidity Range	< 30% RH
Normal Wire Diameter	50um
Nominal Width of a Gap Between wires	75um
Fight Time	0 ~ 99H59M
Blowing Time	0 ~ 99H59M
Specimen Power Outlet	Dust-proof socket 16A
Controller	Programmable color LCD touch screen controller, Ethernet connection
Safety Device	Over-temperature Protection; Over-current Protection; Earth Leakage Protection; Phase Sequence Protection
Exterior Material	A3 Steel Plate with protective coating
Interior Material	SUS304 stainless steel
Standard Configuration	Sample shelf, dust wiper, talcum powder(5kgs)
Power	AC380V 50Hz

Details of IP6X Dustproof Ingress Test Machine

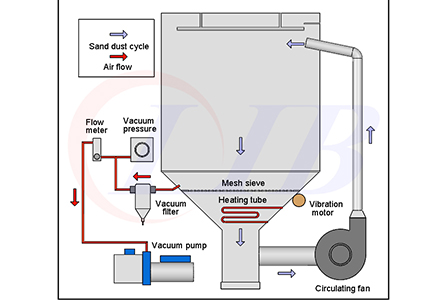

Dust circulation system	Vacuuming the sample
Low-noise fans ensure uniform dispersion of dust. The bottom is equipped with a dust collection trough, which supports quick cleaning and dust recovery for recycling.	Vacuum interface, vacuum pump reduces the vacuum degree of the test piece to  50 Pa, vacuum pressure gauge monitors and records the change of vacuum degree in real time.

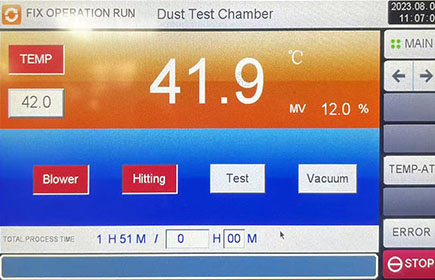

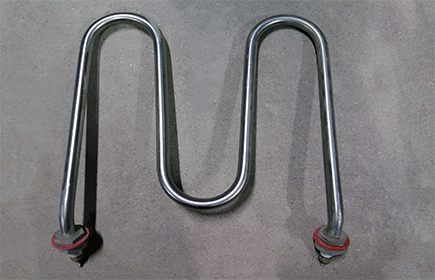

Intelligent controller	Heating tube
Color touch screen, intuitive operation interface. Multiple programmable schemes are available, parameter data can be displayed in real time, and report export in PDF/CSV formats is supported.	The high-power heating tube is located beneath the screen, with adjustable temperature range RT  -  50 °C, to prevent dust from clumping and affecting the test.
