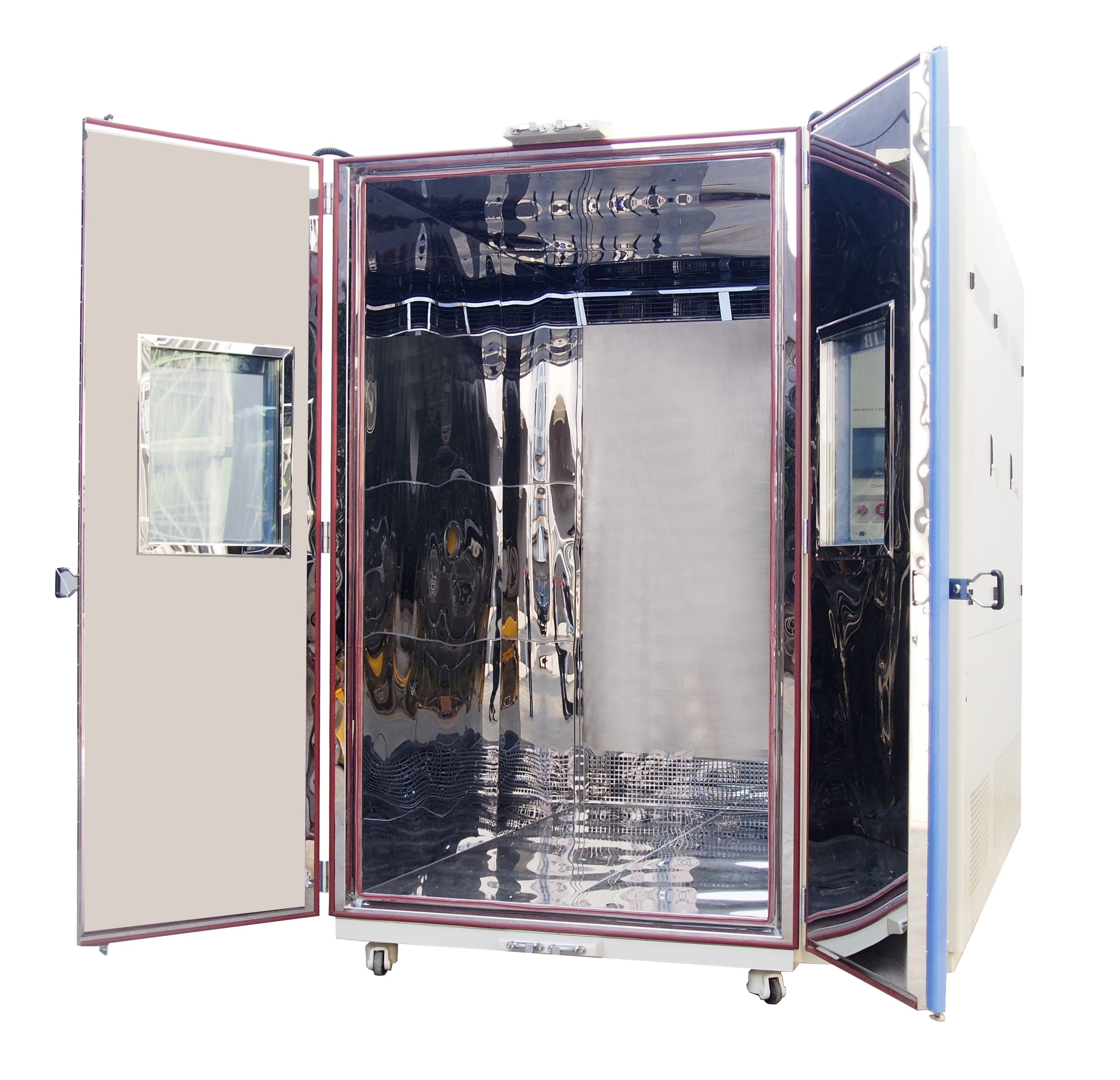

LIB drive-In environmental chambers are available in many sizes and configurations. Drive In chambers is designed for testing of any type vehicle such as automobiles with the capability to simulate weather environments from extreme heat and humidity to cold temperatures.
1. The drive-In environmental chamber enables whole vehicle testing. The chamber can simulate a variety of environmental conditions such as temperature, humidity, corrosion, altitude, sand and dust, rain, noxious gases and so on.
2. From obtaining customer needs, to discussing solutions, production, transportation, installation and commissioning, LIB can realize one-stop solutions.
3. LIB team responds quickly, has high work efficiency and can delivery the chamber as soon as possible.
Model | WTH-0015C |
Internal dimension (mm) | 2500*2500*2500 D*W*H |
Overall dimension (mm) | 4000*2550*2850 D*W*H |
Temperature range | -60℃ ~ +150℃ |
Humidity range | 20% ~ 95% RH |
Temperature fluctuations | ± 2.0℃ |
Humidity fluctuations | ± 5.0% RH |
Heating rate | 1℃ / min |
Cooling rate | 1 ℃ / min |
Controller | Programmable color LCD touch screen controller; Ethernet port |
Cooling system | Mechanical compression refrigeration system |
Safety device | Humidifier dry-combustion protection; over-temperature protection; over-current protection; Refrigerant high-pressure protection; Water shortage protection; Earth leakage protection |
Exterior material | Steel Plate with protective coating |
Interior material | SUS304stainlesssteel |
All types of test chambers can be designed as drive-in environmental chambers, so the applications ranges diversely, utilized in electronic and electrical components, automotive, aerospace, communication, materials, defense industry and etc., the test pieces are usually large-scale. Comprehensive functions setting such as extreme temperature&humidity, the speed of water,blowing sand and dust and other adjustable functions create complex environments catering different test requirements.
• Available as unibody and detachable, you can choose standardized and customized drive-in environmental chambers.
• On-site installation and commissioning, whole process training and service.
• Exterior chamber body is made of A3 steel plate, with good thermal insulation.
• Circulating fans ensure the evenly air circulation in the large workroom.
• Control system includes temperature, humidity, sand, wind, rain, sunlight and control test parameters.
• Safety protection device: such as overtemperature protection, leakage protection, etc.
• Consider specimen size, quantity and your test laboratory site should match the test chamber’s dimension.
• Determine the test requirements, such as temperature, humidity, noxious gas concentration, salt spray deposition and etc. Select the appropriate drive-in environmental test chamber with required functions.
• High quality can decrease a series of risks, which also improve the test results’ credibility ensuring its good stability and durability.
• Choose drive-in environmental chambers’ manufacturers with good after-sales service to ensure that professional technical support and maintenance services can be obtaines during use time.
Like any other specific type of test chamber, drive-in environmental chamber stimulates different environments to perform all kinds of weathering resistant tests to evaluate products’ reliability and stability. The different thing is that, you can design an integrated test chamber combining various functions, and it is totally not limited to specimen dimension, weight and other stuff. The drive-in environmental chamber can satisfy test piece’s unusual test requirements.
