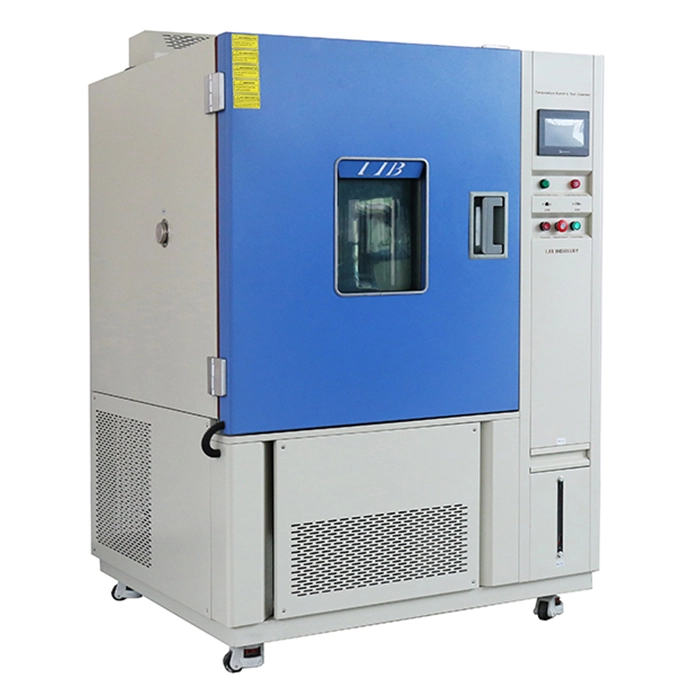

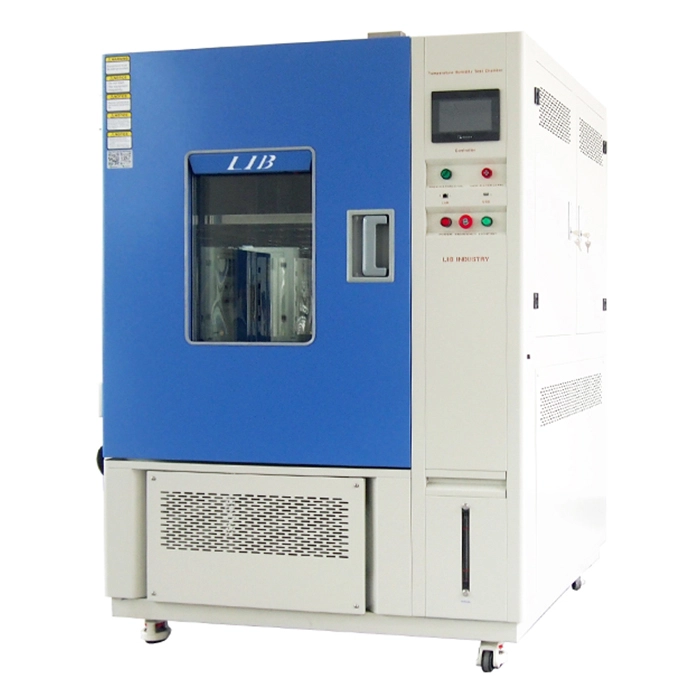

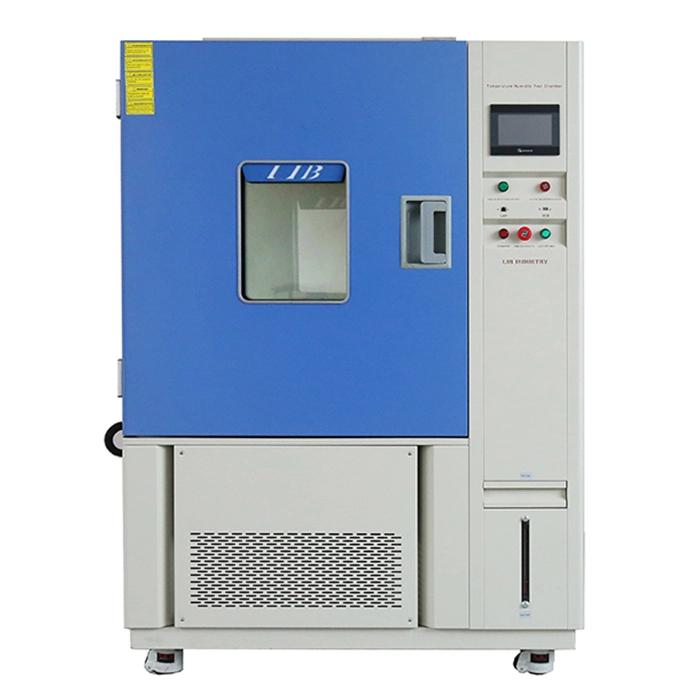

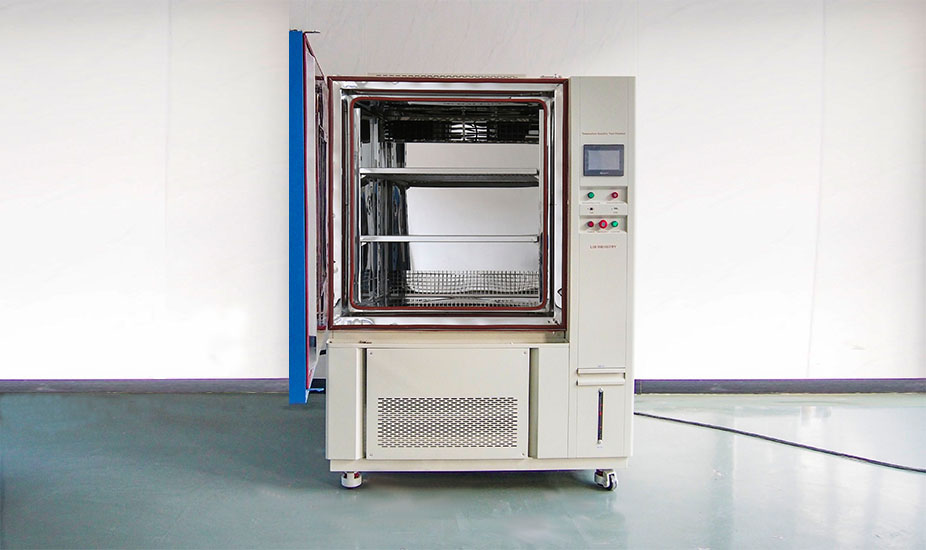

Reach-In Environmental Chamber

Name: Reach-In Environmental Chamber
Brand: Xi'an LIB Environmental Simulation Industry

LIB reach-in environmental chambers simulate different environmental conditions such as high temperature and high humidity, high temperature and low humidity, low temperature and high humidity, high temperature, low temperature conditions. Our reach in test chambers can be customized according to your requirements. Many additional options are available both regarding control and confugurations.

Model: TH-100A, TH-225A, TH-500A, TH-800A, TH-1000A

Features and Benefits of Reach-In Environmental Chamber

1. The reach-in environmental chamber can simulate temperature, humidity, corrosion, altitude, sand, rain, noxious gases and other environmental conditions.

2. The reach in climate test chamber is equipped with a standard sample holder, and can also be equipped with special fixtures to achieve diversified testing requirements.

3. The reach-in environmental chamber has standard model and customized model to choose from. The chamber has a complete range of models.

4. As a leading environmental chamber supplier, LIB team responds quickly, has high work efficiency and can delivery the chamber as soon as possible.

Specifications of Reach-In Environmental Chamber

Model	TH-100	TH-500	TH-800	TH-1000
Internal Dimension (mm)	400500500	700800900	80010001000	100010001000
Overall Dimension (mm)	90010501620	120013402020	130015402120	150015402140
Interior Volume	100L	500L	800L	1000L
Heat load	1000W
Temperature Range	A : -20℃ ～ +150 ℃ B : -40℃ ～ +150 ℃ C: -70℃ ～ +150 ℃
Temperature Fluctuation	± 0.5 ℃
Temperature Deviation	± 2.0 ℃
Humidity Range	20% ~ 98% RH
Humidity Deviation	± 2.5% RH
Cooling Rate	1 ℃ / min
Heating Rate	3 ℃ / min
Cooling system	Mechanical compression refrigeration system
Refrigerating unit	French TECUMSEH compressor
Heating Element	Nichrome heater
Controller	Programmable color LCD touch screen controller, Ethernet connection
Water supply system	Automatic water supply, Water purification system
Humidifier	External isolation, stainless steel surface evaporation humidifier
Safety Device	Humidifier dry-combustion protection; over-temperature protection; over-current protection; Refrigerant high-pressure protection; Water shortage protection; Earth leakage protection
Exterior Material	Steel Plate with protective coating
Interior Material	SUS304 stainless steel
Thermal Insulation	Polyurethane foam and insulation cotton
Observation Window	Interior lighting, double-layer thermo stability silicone rubber sealing
Standard Configuration	1 Cable hole with plug; 2 shelves

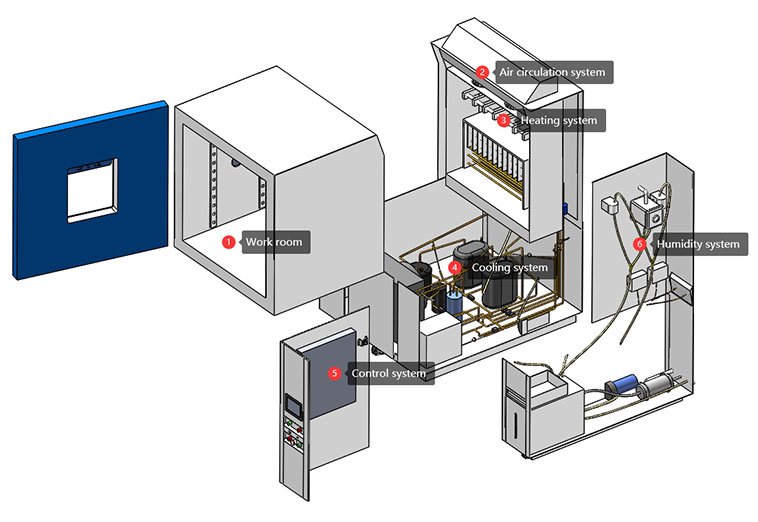

Configuration of Reach-In Environmental Chamber

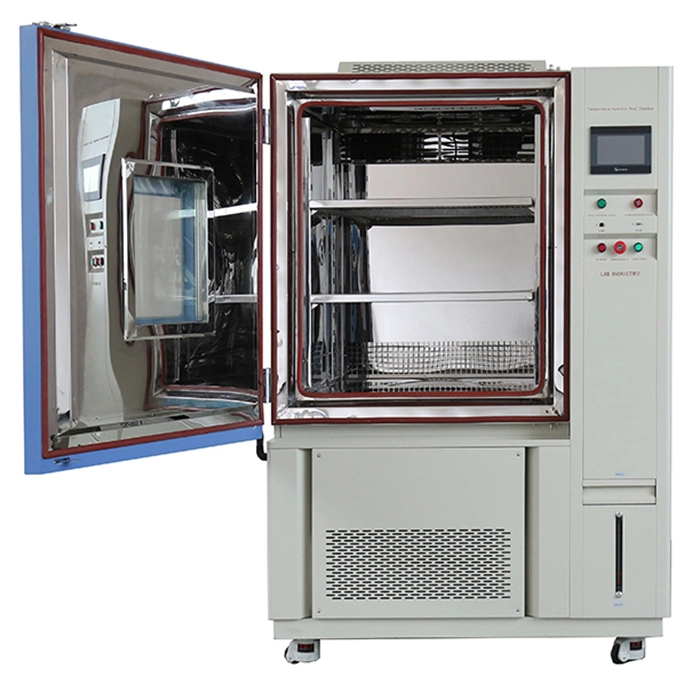

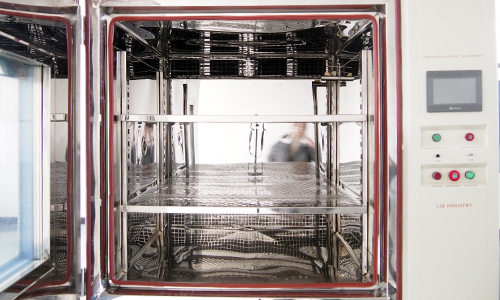

1. Workroom	SUS304 stainless steel with good corrosion resistance, high temperature resistance and easy cleaning. Temperature sensor, humidity sensor, etc., for real-time acquisition of environmental parameters in the reach-in test chamber.

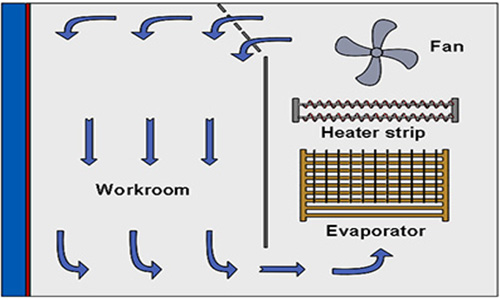

2. Air circulation system	The ventilation system consists of ventilation pipe, centrifugal fan and other components. The fan drives the air flow in the working room to ensure the uniformity of environmental parameters.

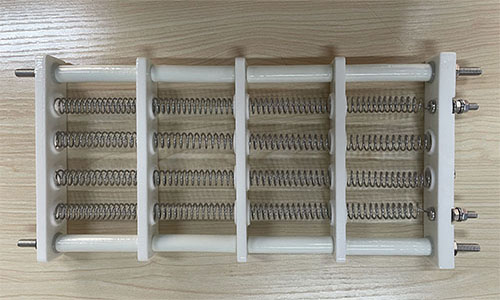

3. Heating system	High-power nickel-chromium alloy heaters, etc., provide heat for the inside of the test chamber according to the set temperature requirements.

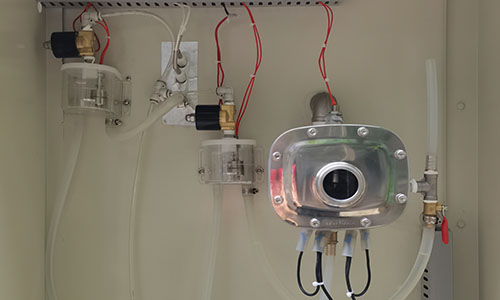

4. Humidity system	External isolation, stainless steel surface evaporation humidifier. Equipped with automatic water supply and water purification system.

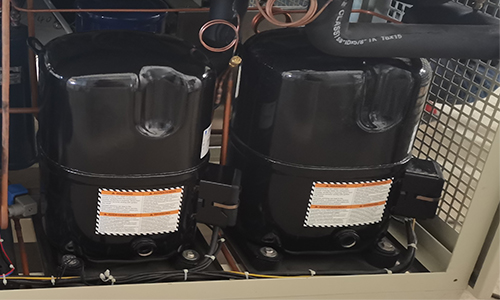

5. Refrigerating system	Mechanical compression refrigeration system, composed of refrigeration compressor (France Tecumseh ), condenser, evaporator.

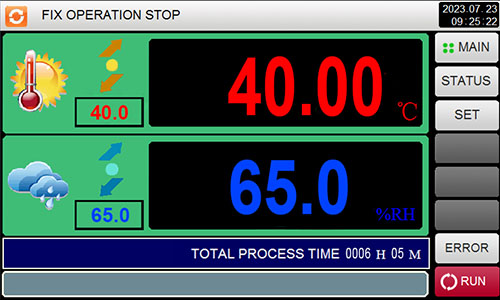

6. Control system	The core control component adopts the programmable color LCD touch screen controller, easy to operate and intuitive display. The control can set and adjust the temperature and humidity in the test chamber, and monitor the actual environmental parameters in the chamber in real time.
