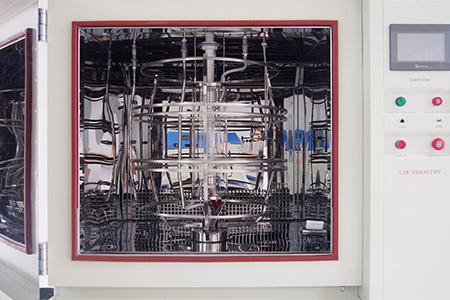

1. According to different specimens, xenon aging test chamber has a variety of models to choose from; For flat specimens, rotating drum type xenon arc chamber is the best; for irregular samples, shelf type xenon arc chamber is suitable.
2. The xenon arc chamber is equipped with a water-cooled xenon arc lamp, which has high stability and good cooling performance.
3. The xenon arc test chamber has a variety of filters to choose from: Daylight Q, Daylight B/B, Window Q, Window B/B filters.
4. The xenon arc chamber can be used for color fastness testing, cracking, weathering, aging testing, and meets various light aging testing standards, such as ASTM, ISO, etc.
Model | XL-S-750 |
Internal Dimension (mm) | 950*950*850 mm |
Overall Dimension (mm) | 1400*1400*1950 mm |
Specimen Holder Size(mm) | 95*200 |
Specimen Capacity | 42pcs |
Chamber Type | Rotating Holder |
Irradiation Source | 1 piece of 4500w water-cooled xenon arc lamp |
Irradiance Range | 35~150 W/㎡ |
Bandwidth Measurement | 300nm~400nm (340nm or 420nm) |
Chamber Temperature Range | Ambient ～ 100 ℃ ±2℃ |
Black Panel Temperature | BPT 35 ～ 85 ℃ ±2℃ |
Humidity Range | 50% ~ 98% RH |
Humidity Deviation | ± 5% RH |
Water Spray Cycle | 1~9999H59M (Adjustable) |
Controller | Programmable color LCD touch screen controller |
Water supply system | Automatic water supply, Water purification system |
Radiometer | UV Radiometer, Tolerance: ±5% |
Cooling System | Mechanical compression refrigeration system |

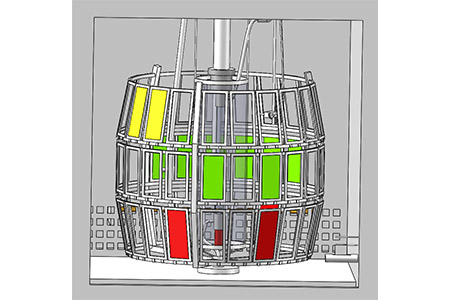

Carry 42 samples at the same time, the size is 95*180mm.
The core light source of the xenon lamp test chamber, can emit a full spectrum of light close to natural sunlight, used to simulate the light conditions in the natural environment for sample aging test. 4500W/6500W optional.

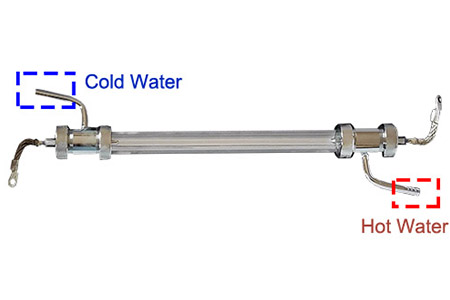

Option 1: Water cooled xenon lamp
By circulating water around the lamp to take away the heat generated, the temperature distribution of the lamp is more uniform, so that the output of light is more uniform and stable.
Option 2: Air-cooled xenon lamp
The use of air flow, through a fan to blow cold air over the lamp surface.

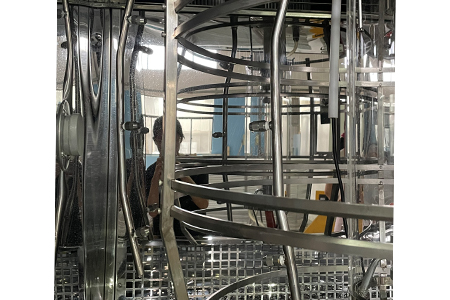

There are 3 nozzles on the side of the sample holder, which are used to spray the three-layer sample holder to simulate the damage of outdoor moisture to the material.

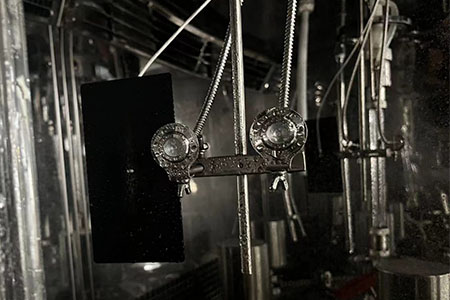

The blackboard temperature is the temperature generated by the temperature of the workroom and the irradiation of the light source ranging from 35℃ to 85℃, and is displayed on the controller through the photoelectric conversion principle.

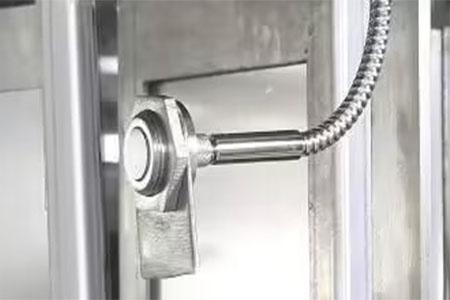

The irradiance meter is a kind of photoelectric sensor with high speed and accuracy. in a specific wavelength range 300-400 nm, 340 nm or 420 nm.
The workroom is equipped with two fans, through the circulation of air from the top and air return from the bottom, so that the temperature in the working room is evenly distributed.
Provide the required temperature for the workroom.
Display temperature, humidity, irradiation and other parameters, control spray, irradiation, cycles and so on.
Equipped with two water tanks, a large tank and a small tank. The large tank is used for cooling the xenon lamp tubes and supplying water to the humidification system, while the small tank is used for spraying.
The refrigeration system is mainly composed of compressor, condenser, throttling element and evaporator.
Xenon arc chambers uses a xenon arc lamp as a light source to emulate true environmental conditions such as sunlight, temperature, humidity and water spray.The spectra of the xenon arc lamp and sunlight are highly convergent.
